X-Ray NDT Lead Intensifying Screen Paper PVC Substrate Radiographic Lead Screen for Industrial Radiography

1 piece
MOQ
X-Ray NDT Lead Intensifying Screen Paper PVC Substrate Radiographic Lead Screen for Industrial Radiography
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: X-Ray Lead Intensifying Screen
Substrate Material: Paper / PVC
Max Width: 430mm
Thickness: 0.03mm ~ 0.25mm
Type:: Flat Sheet / Roll
Application:: Industrial X-ray Radiographic Nondestructive Testing
Matching Consumable: X-ray Film, X-ray Cassette
Matching Method: Used In Pairs, Clamp X-ray Film Between Two Bare Lead Surfaces
Highlight:

X-Ray lead intensifying screen PVC substrate

,

NDT radiographic lead screen paper

,

Industrial radiography lead screen PVC
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Model Number: Lead Intensifying Screen
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 10000 pairs
Product Description
X-Ray NDT Lead Intensifying Screen
Paper/PVC substrate radiographic lead screen for industrial radiography applications. Custom sizes available to meet specific requirements.
Technical Support & Custom Orders:
Contact us at +86 134 8876 5676
Product Overview
Lead intensifying screens are essential components in industrial X-ray radiographic NDT inspection, designed to intensify radiographic images for clearer, more detailed results.
Application Method
These screens are typically used in pairs with X-ray film placed between the bare lead surfaces. Each screen surface features a semitransparent protective coating that must be removed before use. For optimal longevity, we recommend using a cassette.
Base Material Specifications
  • Available in Paper or PVC substrate
  • Custom sizing according to client requirements
  • Maximum width: 430mm
  • Thickness range: 0.03mm to 0.25mm
Standard Available Sizes
Product Type Dimensions
Lead screen100x120x0.03mm
Lead screen100x200x0.03mm
Lead screen100x240x0.03mm
Lead screen100x480x0.03mm
Lead screen80.5x300.5x0.1mm
Lead screen85x305x0.1mm
Lead screen80.5x150x0.1mm
Lead screen100x120x0.1mm
Lead screen100x200x0.1mm
Lead screen100x240x0.1mm
Lead screen180x240x0.1mm
Lead screen100x400x0.1mm
Lead screen100x480x0.1mm
Lead screen240x300x0.1mm
Lead screen350x430x0.1mm
Lead screen100x200x0.2mm
Lead screen100x400x0.2mm
Lead screen100x200x0.125mm
Lead screen100x240x0.125mm
Lead screen100x240x0.5mm
Lead screen180x240x0.5mm
Lead screen240x300x0.5mm
Lead screen100x480x0.5mm
Lead screen350x430x0.5mm
Lead screen100x254x0.125mm (4"x10"x0.125mm)
Lead screen100x381x0.125mm (4"x15"x0.125mm)
Lead screen100x400x0.125mm
Lead screen100x480x0.125mm
Lead screen150x400x0.125mm
Lead screen180x430x0.125mm
Lead screen89x430x0.127mm (3.5"x17"x0.005")
Lead screen115x430x0.127mm (4.5"x17"x0.005")
Lead screen89x430x0.254mm (3.5"x17"x0.010")
Lead screen115x430x0.254mm (4.5"x17"x0.010")
Lead screen14"x17"x0.125mm
Lead screen rollW80mm X T0.03mmX 5 meters
Lead screen rollW80mm X T0.03mmX 10 meters
Lead screen rollW80mm X T0.03mmX 15 meters
Product Image

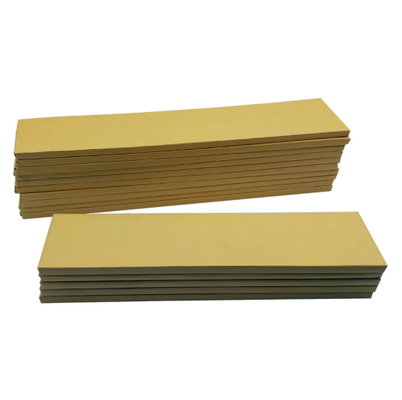

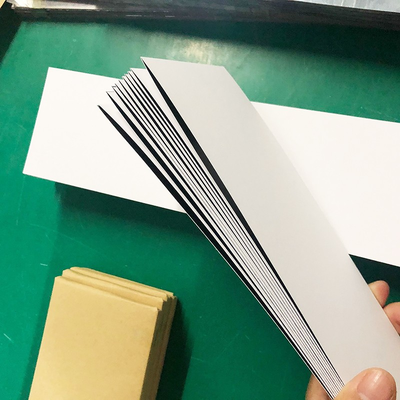

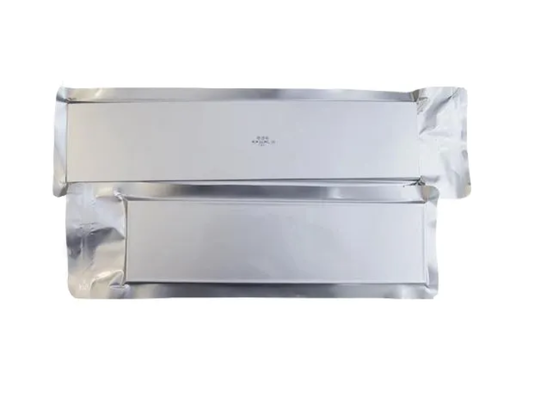

X-Ray NDT Lead Intensifying Screen for industrial radiography applications
