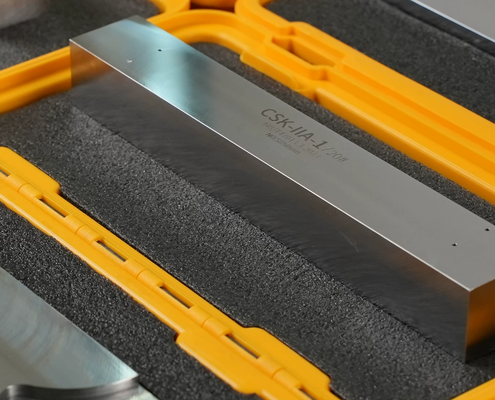

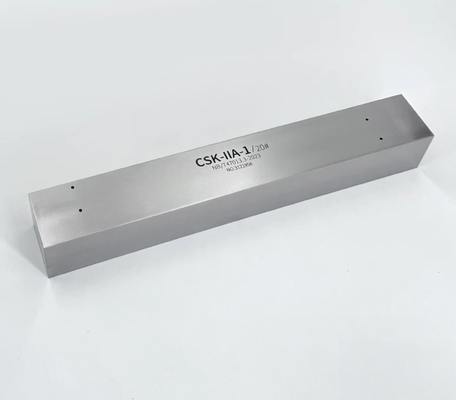

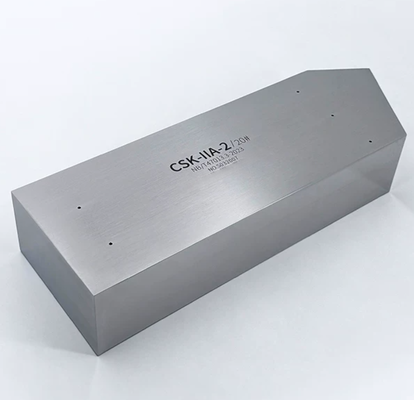

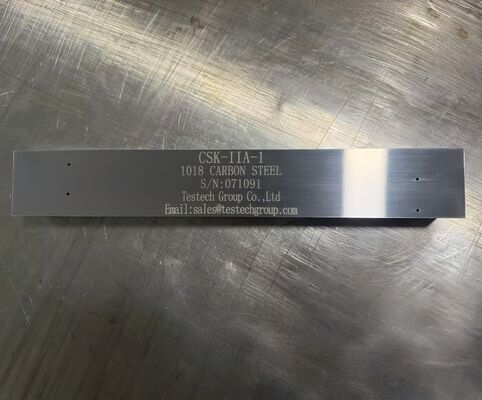

CSK-IIA Series Ultrasonic Calibration Test Blocks
CSK-IIA-1, CSK-IIA-2, and CSK-IIA-3 Carbon Steel Ultrasonic Testing Calibration Blocks for Pressure Vessel UT Inspection
Product Overview
The CSK-IIA Series Ultrasonic Test Blocks are precision calibration tools designed for ultrasonic testing equipment used in pressure vessel inspection and quality control applications.
For technical questions and custom requirements, contact us via phone/WhatsApp at +8613488765676
Technical Specifications
Model Applicable Thickness t(mm) Buried depths of SDHs for Shear Wave Inspection (mm) Buried depths of SDHs for Longitudinal Wave Inspection (mm)
CSK-IIA-1 6 ~ 40 5, 10, 15, 25, 35 5, 10, 15, 20, 30, 40
CSK-IIA-2 ＞40 ~ 100 10, 30, 50, 70, 90 10, 20, 30, 40, 50, 98, 101.6
CSK-IIA-3 ＞100 ~ 200 10, 30, 50, 70, 90, 110, 140, 170, 200 10, 20, 30, 40, 59.64, 79.64, 119.64, 123.92, 193.21
Technical Drawings
Drawing of CSK-IIA-1
Technical drawing of CSK-IIA-1 ultrasonic calibration test block
Drawing of CSK-IIA-2
Technical drawing of CSK-IIA-2 ultrasonic calibration test block
Drawing of CSK-IIA-3
Technical drawing of CSK-IIA-3 ultrasonic calibration test block
