Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration

1 piece
MOQ
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Features Gallery Product Description Chat Now
Features
Specifications
Product Name:: Ultrasonic Step Calibration Block
Type:: Metric Step Block / Inch Step Block / Pipe Step Block
Step Quantity:: 4 Step / 5 Step / 6 Step / 10 Step
Material:: Copper Aluminum Stainless Steel Carbon Steel
OEM & ODM:: Support
Application:: Ultrasonic Thickness Gauge Calibration, NDT Testing
Industry Standard:: Compliant With ASTM E797, ISO 16810
Highlight:

Ultrasonic calibration block copper aluminum

,

Stainless steel calibration block for thickness gauge

,

Carbon steel ultrasonic flaw detector block
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 100pcs
Product Description

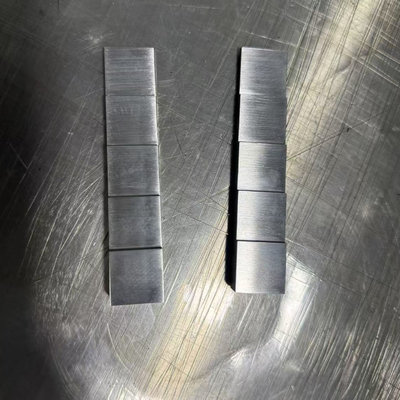

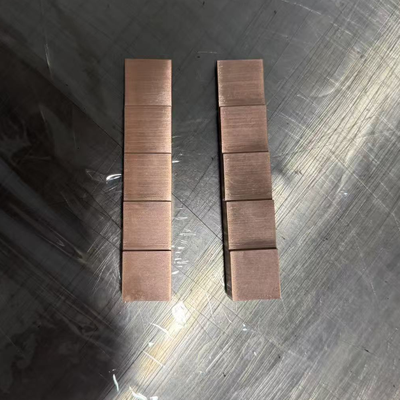

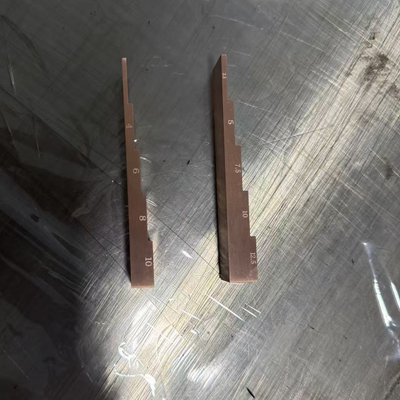

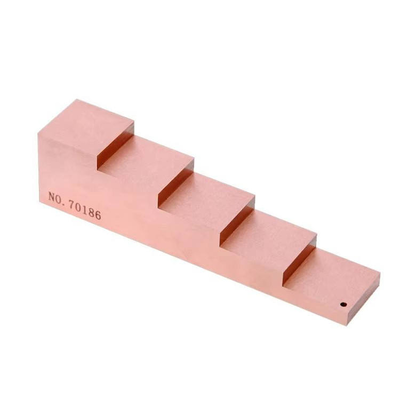

Ultrasonic Step Calibration Blocks
Precision calibration blocks for ultrasonic thickness gauges and flaw detectors, available in copper, aluminum, stainless steel, and carbon steel materials.
Available Models & Specifications
Model Step Thickness & Dimensions
4 Step Metric Block 3mm / 5mm / 10mm / 15mm
Dimension: 80 x 20mm
4 Step Inch Block 0.250" / 0.500" / 0.750" / 1.000"
Dimension: 3.15" x 0.8"
5 Step Inch Block 0.100" / 0.200" / 0.300" / 0.400" / 0.500"
Dimension: 4" x 0.8"
6 Step Block 1 1mm / 3mm / 5mm / 10mm / 15mm / 20mm
Dimension: 120 x 20mm
6 Step Block 2 2.5mm / 5mm / 10mm / 15mm / 20mm / 25mm
Dimension: 120 x 20mm
10 Step Block Range 1 1mm / 2mm / 3mm / 4mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm
Dimension: 200 x 20mm
10 Step Block Range 2 2mm / 4mm / 6mm / 8mm / 10mm / 12mm / 14mm / 16mm / 18mm / 20mm
Dimension: 200 x 20mm
10 Step Inch Block 0.100" / 0.200" / 0.300" / 0.400" / 0.500" / 0.600" / 0.700" / 0.800" / 0.900" / 1.000"
Dimension: 8" x 0.8"
5 Step Pipe Calibration Block 2.5mm / 5mm / 10mm / 15mm / 20mm
Total Length: 100mm
Additional Step Block Configurations
  • 4A steps block: 6.25-25mm
  • 4B steps block: 5-20mm
  • 4 steps block: 0.25-1.00 inch
  • 5A steps block: 2.5-12.5mm
  • 5B steps block: 2-10mm
  • 5 steps block: 0.1-0.5 inch
  • 7A steps block: 3-48mm
  • 7B steps block: 1-10mm
Ultrasonic step calibration block for thickness gauge and flaw detector calibration
