Automatic X-ray Film Developer for NDT Industrial Radiography

1 pcs
MOQ
Automatic X-ray Film Developer for NDT Industrial Radiography
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: NDT (Non-Destructive Testing) Automatic X-ray Film Developer
Compatible Film Type: Industrial Radiographic Testing (RT) Flaw Detection Film
Film Size: Min. 60mm, Max. 435mm
Processing Time: 6-14 Min (Adjustable)
Processing Capacity: 8-18 Sheets/hour (356×432mm); 30-72 Sheets/hour (80×300mm)
Tank Capacity: 5.2L
Developer Temperature: 20-40℃ (Adjustable)
Highlight:

automatic X-ray film developer

,

NDT industrial radiography equipment

,

X-ray film developer machine
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: RT-P14A
Payment & Shipping Terms
Packaging Details: In Wooden
Delivery Time: 5-8 days
Payment Terms: T/T,Western Union,PAYPAL,CREDIT CARD
Supply Ability: 500 pcs
Product Description
Automatic X-ray Film Developer for NDT Industrial Radiography
Product Overview
The RT-P14A Automatic Film Processor represents the latest generation of industrial radiography equipment from TESTECH GROUP CO.,LTD. Engineered with superior quality and robust performance, this processor features an extra-large digital display panel and integrated microcomputer control system with numerous innovative capabilities that have earned widespread user acceptance.
Key Features
  • Densely arranged roller assembly ensures reliable transmission of various film sizes while preventing chemical splashing
  • Adjustable film processing speed enables automatic continuous operation for batch processing requirements
  • Timed operation design reduces crystal deposition on roller surfaces
  • Adjustable directional bridge prevents film jamming
  • Configurable spacing and roller assembly structures prevent pressure marks on different film base materials
  • Unique heating system isolated from chemical solution extends heating rod service life
  • Adjustable development and drying temperatures ensure reliable film processing quality
  • Automatic chemical solution circulation and replenishment maintains solution freshness
  • Specialized conical drying air duct system ensures uniform air distribution and eliminates water stains
  • Easy installation with optional water-free circulation system for field inspection and vehicle-mounted operations
Applications
Widely used in radiographic testing across aviation, aerospace, military engineering, railway, shipbuilding, chemical industry, mining, oilfield, power stations, and commodity inspection. Essential for improving production qualification rates and reducing operational costs.
Operating Conditions
  • Operating Temperature: +23℃~+30℃
  • Recommended Storage Temperature: +28℃
  • Relative Humidity: ≤70%
  • Environment: Darkroom required, no strong vibration, corrosive media, dust, waste gas or other impurities
Technical Specifications
Parameter Specification
Film Size Min. 60mm, Max. 435mm
Processing Time 6, 7, 8, 9, 10, 11, 12, 13, 14 (min)
Film Feed Speed 65mm/min - 145mm/min
Processing Capacity 8-18 sheets/hour (356×432mm); 30-72 sheets/hour (80×300mm)
Developer Tank Capacity 5.2L
Fixer Tank Capacity 5.2L
Wash Tank Capacity 5.2L
Developer Temperature 20-40℃ (Adjustable)
Fixer Temperature 20-40℃, Automatically Adjusted According to Developer Temperature
Water Temperature 5-25℃
Drying Temperature 20-70℃ (Adjustable)
Water Consumption 2L/min During Film Operation
Replenishment Rate Auto/Manual 50-500ml/㎡
Power Supply 220V 8.8A 50Hz
Weight 40kg (Empty Tanks); 55kg (Filled with Water)

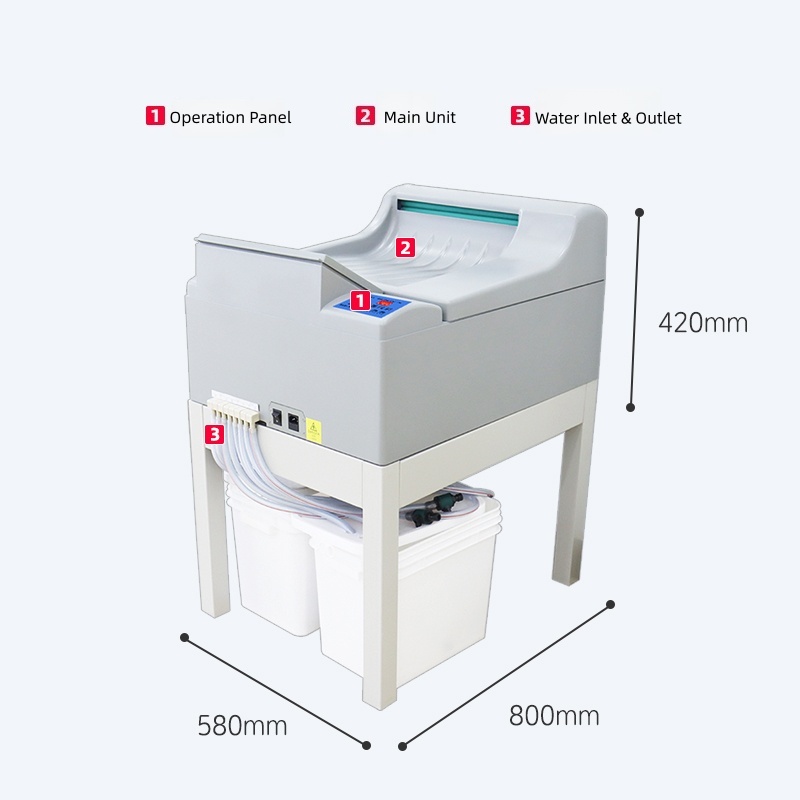

Overall Dimensions 800mm×580mm×420mm
Note: Replenishment rate unit corrected to industry standard ml/㎡
Standard Configuration
Category Item Quantity Remarks
Main Unit Machine Cover 1 pc -
Operation Manual 1 copy -
Power Cord 1 pc -
Water Inlet Pipe 1 pc -
Developer Drain Pipe 1 pc 0.5m (with Valve)
Fixer Drain Pipe 1 pc 0.5m (with Valve)
Wash Drain Pipe 1 pc 0.5m (with Valve)
Developer Replenishment Pipe 1 pc 0.8m (with Nozzle)
Fixer Replenishment Pipe 1 pc 0.8m (with Nozzle)
Developer Overflow Pipe 1 pc 0.5m
Fixer Overflow Pipe 1 pc 0.5m
Wash Overflow Pipe 1 pc 2.0m
Pipe Clamp 10 pcs -
Accessories Bracket 1 set -
Spare Parts Included
Item Quantity Remarks
32-Tooth Round Hole Gear 1 pc -
32-Tooth Drive Gear 1 pc -
20-Tooth Helical Gear 1 pc -
16-Tooth Drive Gear 2 pcs -
Worm Gear 1 pc -
Fuse 2 pcs -
Hose Clamp 2 pcs 10 A
Long Spring Leaf 10 pcs -
Short Spring Leaf 10 pcs -
Card 8 pcs -
Shaft Sleeve 4 pcs -
M 4×10 Screw 4 pcs -
M 4 Nut 4 pcs -
Lock Pin 2 pcs -
Check Valve 2 pcs -
Bellows 1 pc -
Maintenance and Care Procedures
  • Before each operation, wipe the film feed table and external body with a soft cloth to remove dust and dirt
  • Verify proper connection of all peripheral equipment and ensure replenisher tank liquid level is not below 1/3 of tank height
  • Position replenishment tubes properly to tank bottom and adjust all overflow pipes to correct positions
  • Open top cover, wipe internal water droplets from chemical evaporation, and clean drive roller surfaces of crystals or dirt
  • Refill wash tank with fresh water after cleaning
  • Confirm power supply connection, turn on water inlet switch, then activate main power switch
  • Test manual replenishment button to verify developer and fixer solutions replenish normally and circulation pump operates properly
  • Wait until processor reaches set temperature before starting operation
  • Feed 1-2 cleaning films or clean waste films through machine before each operational session
  • After operation, turn off power and water inlet switch, drain all water from wash tank
  • Open film feed cover and leave top cover slightly ajar to prevent condensation
  • Use ventilation equipment when available to maintain proper air circulation
