High Quality Ultrasonic Pulser Receivers for Flaw Detection PR20

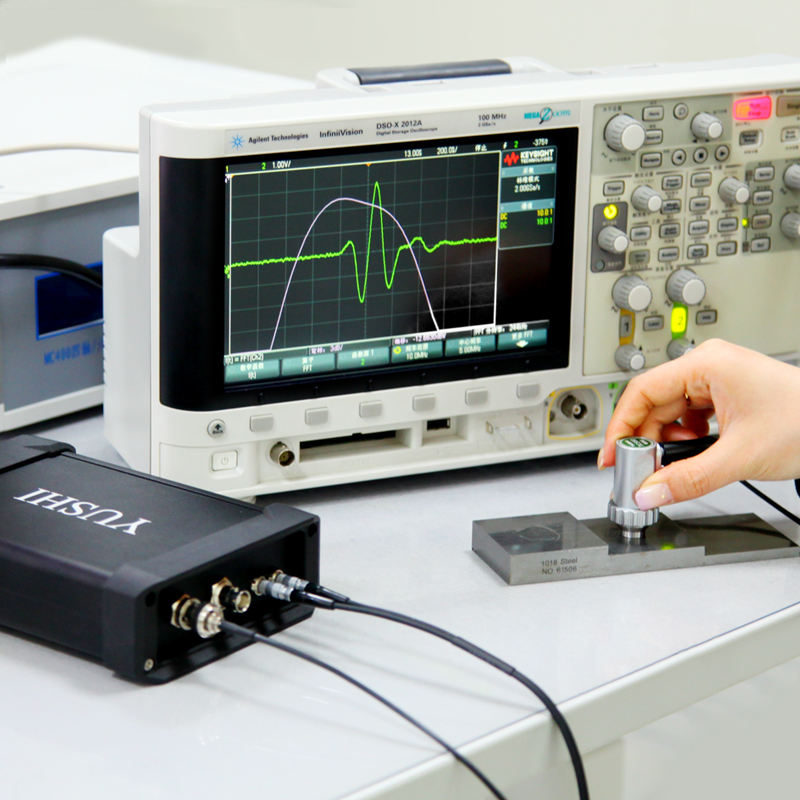

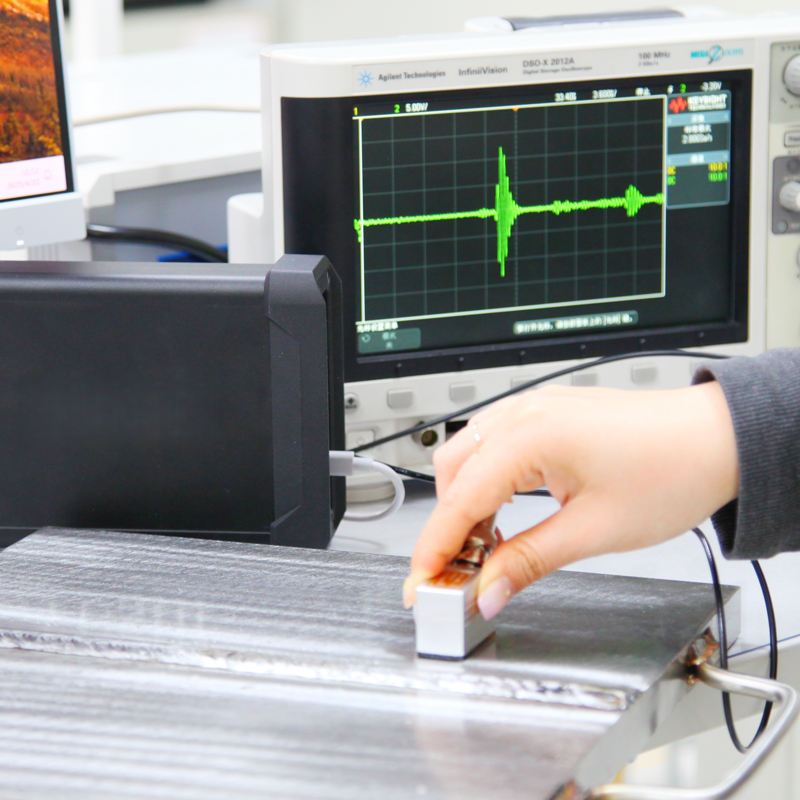

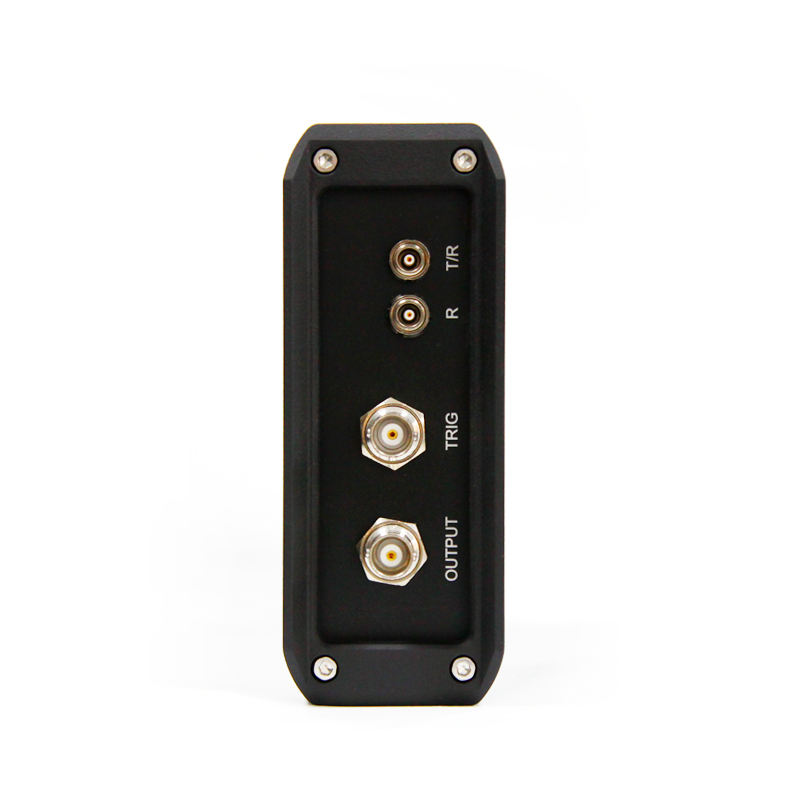

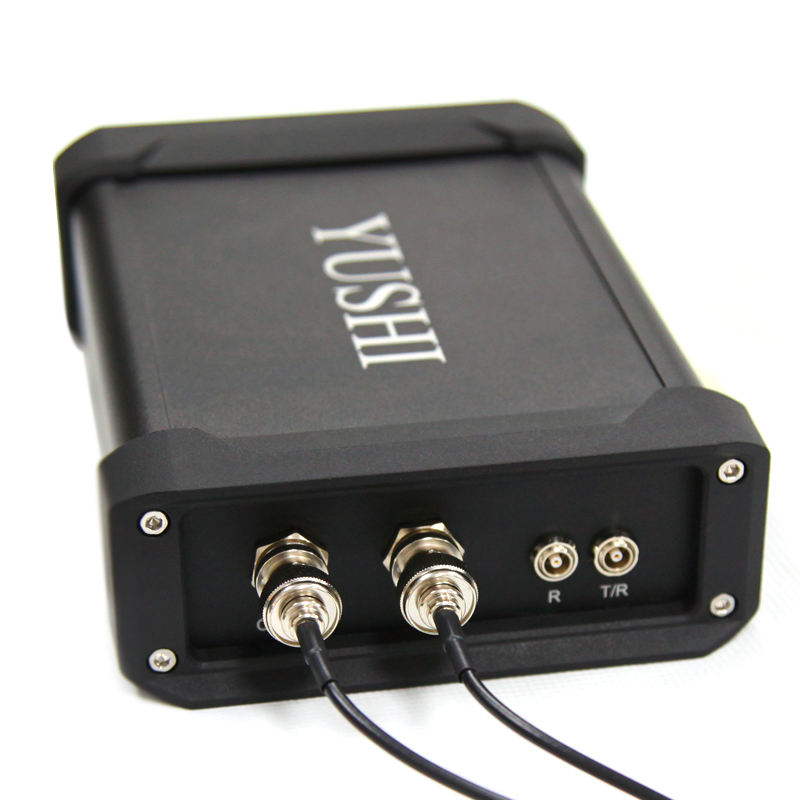

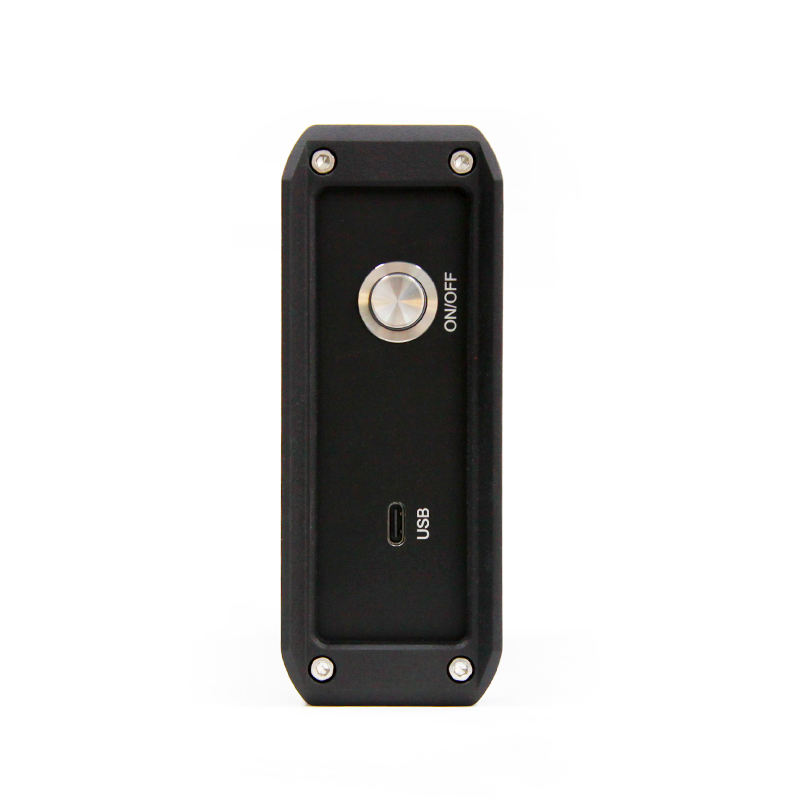

The PR20 is a high-performance computer-controlled ultrasonic pulse generator and receiver. The instrument is connected to a computer and an oscilloscope for use, assisting in utrasonic flaw detection, thickness measurement, and probe testing, etc. It has a wide range of applications in non-destructive testing (NDT) and material analysis.

The pulse generator and receiver include a Windows-based control software, allowing users to select trigger sources, transmit voltage, repetition frequency, and pulse width. Additionally, it enables switching between single/dual-crystal modes, adjusting damping and gain to meet different user requirements. The open SDK software package also allows users to develop custom applications on various mainstream Windows systems.

• Maximum Bandwidth: 20MHz
• Repetition Frequency Internal Trigger: 8 levels adjustable (4Hz-2KHz)
• Pulse Width: Adjustable from 1~40 times (one times is approximately 28ns)
• Transmitting Voltage: 8 levels adjustable, up to 400V maximum
• Damping Control: Multiple levels adjustable
• Support Transmit-Receive (TR) mode and Pulse-Echo mode
• 60dB Receiving Gain Range
• Available probe frequency 0.5MHz-15MHz
• PR20 external trigger repetition frequency up to 40KHz
• PR20 transmit pulse amplitude 60-400V eight-speed adjustable

• 1 pc - Host Machine PR20 Ultrasonic Pulser Receiver
• 1 pc - Communication USB
• 1 pc - USB Type-C data cable
• 1 pc - Control Software (Stored in USB Flash Drive)
• 2 pc - Connecting Cable BNC to BNC single cable ( Q9 to Q9 )
