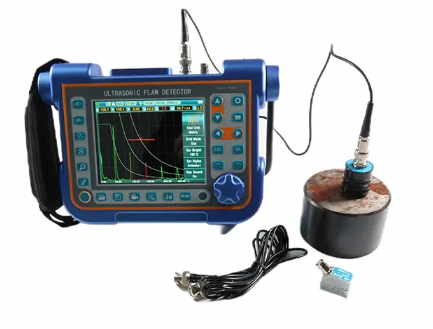

Ultrasonic Flaw Detector Portable NDT Tester For Weld & Material Inspection

This instrument is a portable industrial digital ultrasonic flaw detector that can quickly, easily, accurately and non‑destructively detect, locate, evaluate and diagnose various defects in workpieces, including cracks, inclusions, voids, and other discontinuities.

Suitable for both laboratory and on‑site engineering applications, it is widely used in manufacturing, iron and steel metallurgy, metal processing, chemical industry, and other fields requiring defect detection and quality control.

It also plays an important role in on‑line safety inspection and service life assessment in aerospace, railway transportation, boilers, pressure vessels, and related industries.

The instrument is widely applied to locate and size hidden cracks, voids, disbonds, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks, pressure vessels, turbines, and structural components.

The instrument features core hardware based on ARM + FPGA architecture, paired with a highly reliable multi‑tasking operating system, greatly enhancing functionality, portability, durability and reliability.

It adopts a master‑slave menu structure with shortcut keys and a digital rotary knob. Lightweight and portable, it can be comfortably operated with one hand.

High‑resolution full‑digital multi‑color TFT LCD display (640×480 pixels) for clearer, more user‑friendly waveform presentation.

Four selectable user interface styles to adapt to different working environments.

60 Hz high‑speed refresh rate ensures clear display of subtle waveform changes. LCD brightness is fully adjustable.

All‑aluminum metal enclosure for excellent durability and strong electromagnetic shielding.

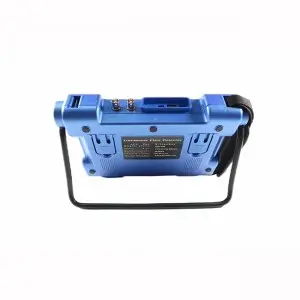

360° rotating damping stand and rubber boot for convenient operation. Tempered glass panel for superior hardness, wear resistance and scratch resistance.

Real‑time screenshot function for all interfaces and flaw detection screens, saved as BMP images to a USB flash drive in color or grayscale mode.

Flaw detection reports can be exported as PDF files to a USB drive for easy archiving and printing. All PDF content can be customized according to user requirements. BMP images and PDF files can be viewed on computers and mobile devices.

Up to 15000 mm in steel; measuring range can be adjusted in fixed steps or continuously variable.

Ideal for large workpieces and high‑resolution measurement applications.

Pulse energy: 100V, 200V, 250V, 300V, 350V, 400V, 500V.
Pulse width: 0.1 µs to 0.5 µs adjustable to match different frequency probes.
Pulse repetition frequency: 20 Hz to 2 kHz adjustable.
Damping: 50Ω, 150Ω, 250Ω, 500Ω selectable for optimized probe performance.

Compatible probe types: single crystal probe, dual crystal probe, angle beam probe, through‑transmission probe, climbing probe.

Sampling: 16‑bit AD converter with 320 MHz sampling rate.

Rectification: positive half‑wave, negative half‑wave, full wave, RF.

Analog bandwidth: 0.2 MHz to 20 MHz, with automatic frequency selection for optimal matching.

Gain: 0 dB to 110 dB adjustable in 0.1 dB, 2 dB, 6 dB steps.

Two fully independent gates support multiple measurement modes based on peak triggering for signal amplitude and distance analysis.

Echo‑to‑echo mode enables accurate gating for closely spaced signals.

Gate start: adjustable over the full display range.

Gate width: adjustable from gate start to the end of the display range.

Gate threshold: 0 to 99% full screen height.

Alarm: threshold positive / negative with LED flashing indicator.

Built‑in large‑capacity non‑volatile memory ensures data retention after power off.

Stores up to 500 channel files for calibration setups and probe parameters.

Stores up to 1000 waveform report files containing A‑scan data and settings.

All files can be stored, recalled and deleted.

Channel settings and report files can be exported via USB flash drive for unlimited external storage.

The video recording function supports real‑time recording of the inspection process for later analysis.

Recorded files can be played back on the instrument or dedicated software.

Internal storage supports up to 10 video files, each up to 5 minutes.

When saved to a USB drive, file number and duration are unlimited.

Playback supports pause, fast forward, fast rewind and stop.

Auto calibration: automatic calibration of probe zero offset, probe angle (K value), and material sound velocity.

Flaw location: real‑time display of sound path, surface distance, depth and amplitude.

Flaw sizing: automatic defect sizing using AVG / DAC curves for fast qualification.

Digital readout: direct thickness / depth display for straight probes; surface distance and depth for angle probes.

DAC / AVG curves: automatically generated, with editable sampling points; curves dynamically follow gain, range and delay settings.

AWS D1.1 standard support reduces manual calculation and improves inspection efficiency.

Curved surface correction, crack height measurement, and gate magnification functions.

A‑scan envelope, peak hold, peak marking, and echo coding (1–9 colored zones).

A‑scan freeze function and B‑scan imaging for intuitive defect profile display.

Built‑in real‑time clock maintains continuous timekeeping.

Dual high‑speed USB 2.0 ports supporting two modes:

• U‑DISK: save configuration, reports, screenshots and videos to USB drive.
• U‑BRIDGE: data exchange with PC DataPro software.

Built‑in high‑capacity lithium‑ion battery.

Continuous operation: over 12 hours.

Typical charging time: 4–6 hours.

Precise and efficient adjustment via the multifunctional rotary knob.

Firmware can be easily upgraded via USB flash drive without risk of equipment damage.

• Measuring Range: 0 – 15000 mm (steel velocity)
• Pulse Repetition Frequency: 20 Hz – 2000 Hz
• Material Velocity: 1000 – 20000 m/s
• Dynamic Range: > 40 dB
• Horizontal Linearity: ±0.2% FSW
• Vertical Linearity: 0.25% FSH; Amplifier Accuracy: ±1 dB
• Resolving Power: > 40 dB
• Sensitivity Margin: > 50 dB (Φ2 flat‑bottom hole at 200 mm depth)
• Rejection (Suppression): 0 – 80% full screen height
• Noise: < 10%
• Gain: 0 – 110 dB, adjustable in 0.1 / 1.0 / 2.0 / 6.0 dB steps
• Bandwidth: 0.2 – 20 MHz
• Pulse Amplitude: > 32 dB
• Display Delay: –20 to 3400 µs
• Probe Delay / Zero Offset: 0 – 99.99 µs
• Test Modes: Pulse‑echo, dual element, through‑transmission
• Rectification: Positive half‑wave, negative half‑wave, full wave, RF
• Display Units: Inch / Millimeter
• Connector: BNC or LEMO
• Power Input: 100–240 VAC, 50/60 Hz
• Operating Temperature: –10 °C to 50 °C
• Storage Temperature: –30 °C to 50 °C

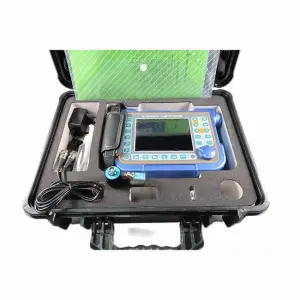

• Main Unit
• Straight Probe
• 4 MHz Angle Probe
• Probe Connection Cable
• Power Adapter & Cable
• PC Software
• Communication Cable
• User Manual
• Hard Carrying Case
