Home /Products/Ultrasonic Calibration Blocks/High Quality TESTECH NDT Thickness 19mm 38mm 1018 Steel ASME Calibration Block

High Quality TESTECH NDT Thickness 19mm 38mm 1018 Steel ASME Calibration Block

1 Piece
MOQ
Bulk discount
Price
High Quality TESTECH NDT Thickness 19mm 38mm 1018 Steel ASME Calibration Block
Features Gallery Product Description Chat Now
Features
Specifications
Customized Support: OEM
Type: NDT Testing, NDT Testing
Model Number: ASME Calibration Test Block
Thickness: 19mm 38mm
Material: 1018 Steel
Product Name: ASME Calibration Test Block
Warranty Period: 1 Years
Certificate: With Calibration Certificate
Highlight:

ndt ut calibration

,

ndt calibration block

,

1018 steel ut calibration
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: ASME 1#
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
TESTECH standard ndt TOFD ASME Calibration Test Block

Application: Used for establishment of primary reference responses for UT examination of welds. ASME Calibration Blocks are intended to be representative of actual components, and therefore do not have the smooth scanning surfaces found on most general-purpose test blocks like the IIW or DSC. Instead, our Basic Calibration Blocks are media blasted on all surfaces to create a rough surface texture that is more characteristic of real-world inspection conditions.

Standard: ASME BPVC-2015

Material: 1018 steel

Thickness: 19mm/ 38mm

Dimension: 19*155*120mm/38*155*150mm

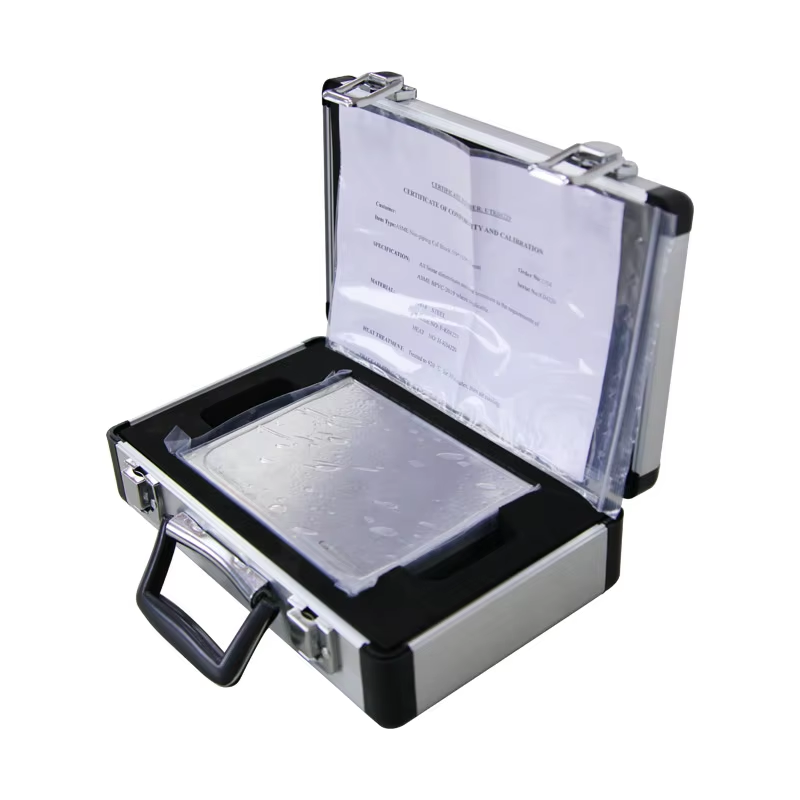

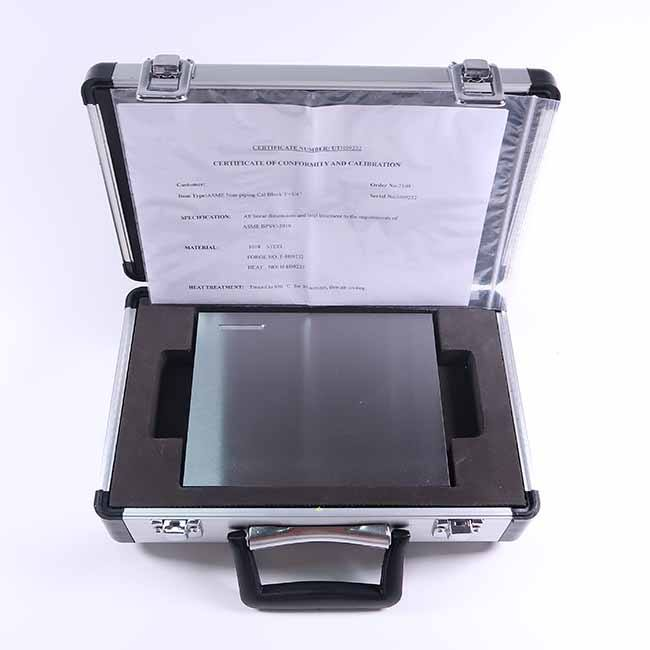

Each Ultrasonic calibration block come with the factory certificate.

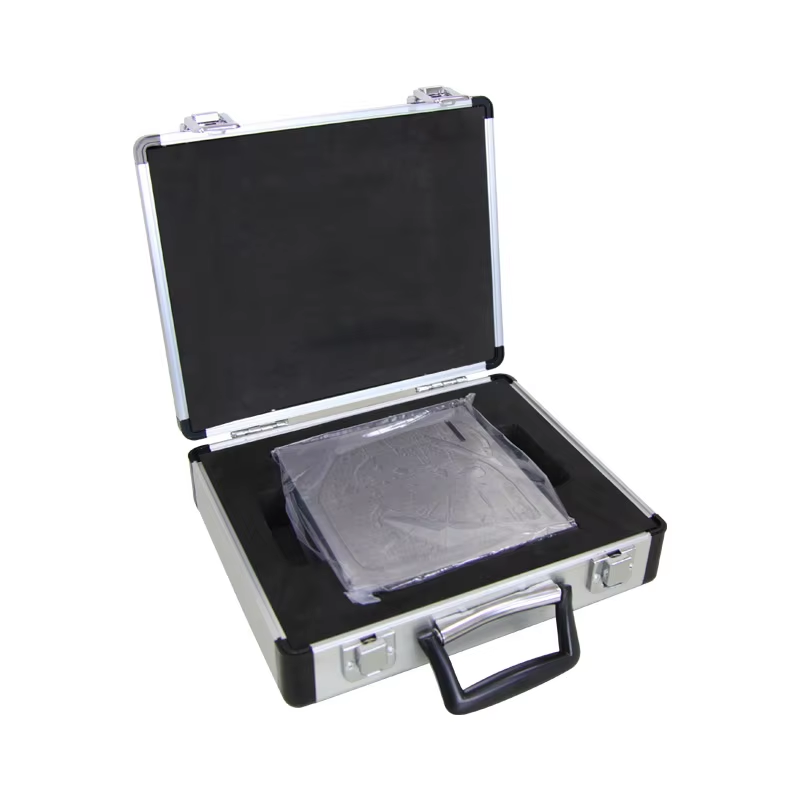

Standard package: aluminum box and in carton

High Quality TESTECH NDT Thickness 19mm 38mm 1018 Steel ASME Calibration Block 0
ASME 1#
ASME BPVC-V (2010) Art.4 non-pipe weld
19mm
150x120x19mm
ASME 2#
ASME BPVC-V (2010) Art.4 non-pipe weld
38mm
150x150x38mm
ASME 3#
ASME BPVC-V (2010) Art.4 non-pipe weld
76mm
150x225x76mm
ASME 4#
ASME BPVC-V (2010) Art.4 non-pipe weld
127mm
150x400x127mm
ASME 5#
ASME BPVC-V (2010) Art.4 non-pipe weld
178mm
150x550x178mm
ASME 6#
ASME BPVC-V (2010) Art.4 non-pipe weld
230mm
150x700x230mm
ASME 1#
ASME BPVC-V (2010) Art.5 pipe weld
t<=25mm
diameter & thickness of the pipe
ASME 2#
ASME BPVC-V (2010) Art.5 pipe weld
t>25~51mm
diameter & thickness of the pipe
ASME 3#
ASME BPVC-V (2010) Art.5 pipe weld
t>51~102mm
diameter & thickness of the pipe
ASME 4#
ASME BPVC-V (2010) Art.5 pipe weld
t>102~152mm
diameter & thickness of the pipe
ASME 5#
ASME BPVC-V (2010) Art.5 pipe weld
t>152~203mm
diameter & thickness of the pipe
ASME 6#
ASME BPVC-V (2010) Art.5 pipe weld
t>203~254mm
diameter & thickness of the pipe
ASME 7#
ASME BPVC-V (2010) Art.5 pipe weld
t>254mm
diameter & thickness of the pipe
