TESTECH NDT Phased Array Test Block

1 Piece
MOQ
Bulk discount
Price
TESTECH NDT Phased Array Test Block
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 3 Years
Type: NDT Testing
Place Of Origin: Beijing, China
Brand Name: TESTECH
Product Name: Phased Array Test Block
Highlight:

ndt ultrasonic calibration blocks

,

ndt calibration block for paut
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: Type B
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
TESTECH NDT Phased Array Test Block

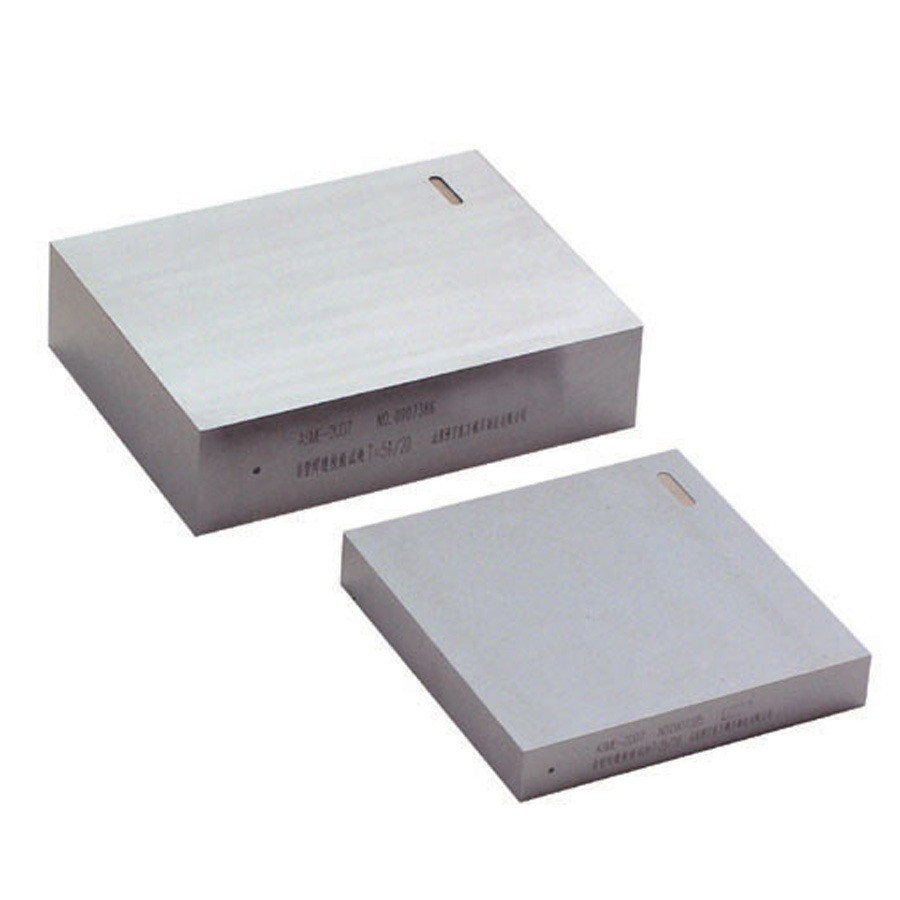

The size and shape of ASME non-pipe weld test block are shown in the chart below, when inspected

For inspection on materials with surface diameter greater than 500mm, test blocks with the same curvature as the workpiece or standard test blocks with a diameter equal to or less than 500mm can be used

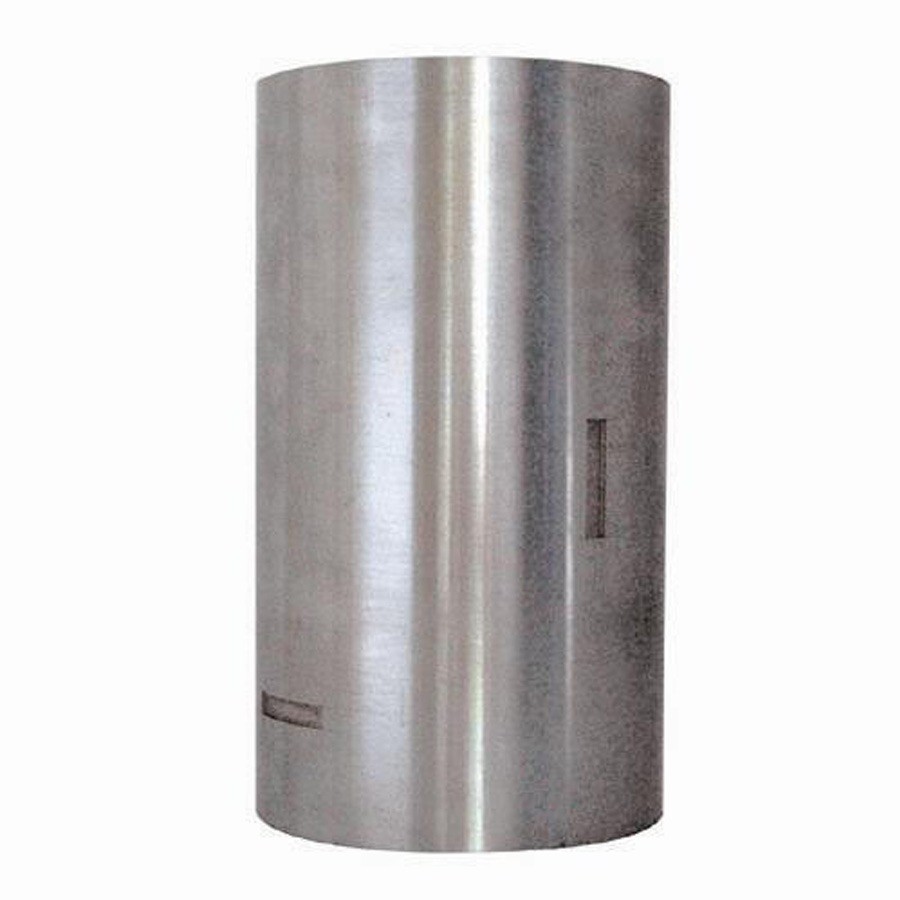

During the upper inspection, the curve test block, namely the tube seam test block, should be used.

  1. The distance between each slot and either end of the test block or other slots is not less than T or 25mm, if larger.
  2. The minimum length L of the test block shall be 200mm or 8T, if larger.
  3. When the inner diameter is equal to or less than 100mm, the minimum radian is 270°. When the inner diameter is greater than100mm, the minimum arc length is 200mm or 3T, and the larger is taken
  4. The depth of each tank is 11% T≥h≥ 8% T, width ≤6mm, length ≥225mm
Products Description
TESTECH NDT Phased Array Test Block 0
TESTECH NDT Phased Array Test Block 1
TESTECH NDT Phased Array Test Block 2
TESTECH NDT Phased Array Test Block 3
TESTECH NDT Phased Array Test Block 4
