Home /Products/Magnetic Particle Testing/MFL-4016 16 Channel Manual MFL Scanning System For Tank Bottom Plate And Pipe Corrosion Thickness Loss Inspection

MFL-4016 16 Channel Manual MFL Scanning System For Tank Bottom Plate And Pipe Corrosion Thickness Loss Inspection

1 pcs
MOQ
MFL-4016 16 Channel Manual MFL Scanning System For Tank Bottom Plate And Pipe Corrosion Thickness Loss Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Product: MFL-4016 MFL Manual Scanning System
Channels: 16 Channels Of MFL Scanning
Scan Width: 160mm
Max Sensitivity: 20% Material Loss For 6mm Thickness
Drive Method: Manual Drive
Thickness Range: 4 Up To 10mm
Coating Thickness: Less Than 2mm
Display Screen: High Resolution TFT LCD Display With Resolution 640*480
Length Clock: Inner/outer Clock
Step Distance: 1-256mm
Max. Scanning Speed: 0.5m/s
Gain: 0-90dB With Min. Step 0.5dB
Filtering: Digital 1-100, High Pass 0-500Hz, Low Pass 10-10000Hz
Power Requirements: DC 14.8V, 6.3AH Lithium Battery, Outer Voltage DC 19±2 V
Size: 253 * 87 * 175mm For MFL Instrument Only
Weight: 2.4kg For MFL Instrument Only
Memory: 16G
Operating Temperature: -20℃ To +55℃
Highlight:

16 channel MFL scanning system

,

tank bottom plate corrosion inspection

,

pipe thickness loss MFL testing
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: MFL-4016
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 5-8 days
Supply Ability: 500 PCS
Product Description

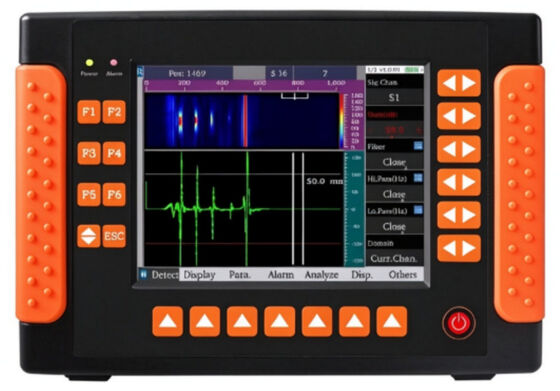

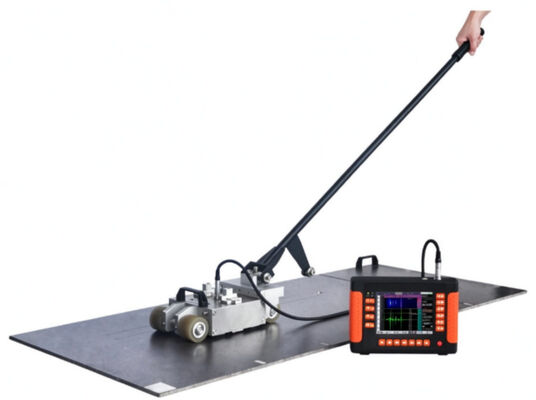

MFL-4016 MFL Manual Scanning System

MFL-4016 MFL Manual Scanning System is designed to check and measure corrosion and thickness decrease of ferrous-magnetic pipes and tank bottom plates by hand. This device is available to inspect 4-10mm thickness defects for pipes and plates by using the advanced magnetic material with high remanence and high coercivity. With small body and easy operation, MFL-4016 is capable of inspecting the corners of tank by hand.

KEY FEATURES

  • 16 channels of MFL scanning
  • Fast scanning with high sensitivity, no need for surface pretreatment before testing
  • Built in with high-performance lithium battery for working more than 8 hours per charge
  • Interface: USB, network, encoder port
  • High resolution TFT LCD display
  • Easy operation, language in Chinese / English
  • Testing report is available, and the testing data can be stored and analyzed in PC
  • Capable of inspecting the corners of the tank to improve the testing coverage
  • Available to run forward or backward with hand scanning, it can go into small hole (diameter ≥450mm) to do inspection
  • Working voltage not more than 24V for tank safety requirement
  • Alarm for defect signal out of accepted range, and alarm for low battery
  • Real-time data acquisition, analysis, defect location and defect percentage identification

TECHNICAL SPECIFICATION

Channel: 16 channels

Scan width: 160mm

Max sensitivity: 20% material loss for 6mm thickness

Drive method: Manual drive

Thickness range: 4 up to 10mm

Coating thickness: Less than 2mm

Display screen: High resolution TFT LCD display with resolution 640*480

Length clock: Inner/outer clock

Step distance: 1-256mm

Max. scanning speed: 0.5m/s

Gain: 0-90dB with min. step 0.5dB

Filtering: Digital 1-100, high pass 0-500Hz, low pass 10-10000Hz

Power requirements: DC 14.8V, 6.3AH lithium battery, outer voltage DC 19±2 V

Size: 253 * 87 * 175mm for MFL instrument only

Weight: 2.4kg for MFL instrument only

Operating temperature: -20℃ to +55℃

Storage temperature: -20℃ to +50℃

Memory: 16G

PURCHASE INCLUDES

1 set of MFL instrument

1 set of MFL manual trolley with probe and magnetic device

2 pieces of probe cable

1 set of scanning and analysis software

1 set of battery charger

1 set of quality certificate and user manual

1 instrument case

One year warranty for MFL instrument
