Pull-off Adhesion Tester | ISO 4624 ASTM D4541 Anti-Corrosion Coating Tester

1 piece
MOQ
Pull-off Adhesion Tester | ISO 4624 ASTM D4541 Anti-Corrosion Coating Tester
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Pull-off adhesion tester for coatings

,

ISO 4624 coating adhesion tester

,

ASTM D4541 anti-corrosion tester
Basic Infomation
Brand Name: TESTECH
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 5-8 workdays
Payment Terms: T/T,western union,PAYPAL,Credit card
Supply Ability: 100pcs per month
Product Description

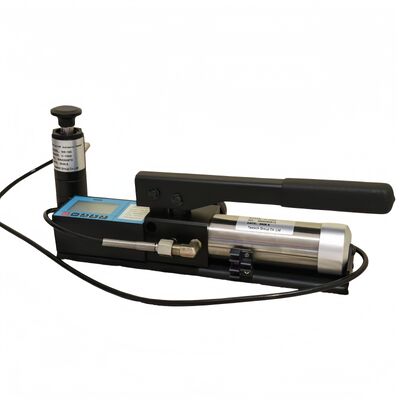

Pull-off Adhesion Tester | ISO 4624 ASTM D4541 Anti-Corrosion Coating Tester
Technical Specifications
  • Rated Tension: 10 KN (Maximum: 10.5 KN)
  • Display: Large, easy-to-read LCD digital display
  • Accuracy: Within ±1% of full scale
  • Power: Rechargeable battery with 3-hour charging time
  • Construction: Alloy & stainless steel main body
  • Protection: Rainproof, dustproof, and impact-resistant
Key Features
  • Portable handheld design for laboratory and field use
  • No external power supply required
  • Keypad selection for dolly size and measurement units
  • Automatic result calculation based on dolly size
  • High-quality hydraulic pump for universal applications
  • High-grade industrial pressure sensor for consistent precision
  • Self-aligning dollies work on both smooth and rough surfaces
  • LCD display with selectable units: MPa or kN
Optional Dolly Sizes

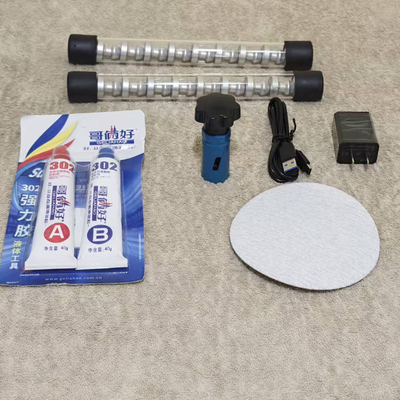

Available in 10 mm, 14 mm, 20 mm, and 50 mm sizes (sold separately)
Compliance Standards
  • ISO 4624 (Paints and varnishes — Pull-off test for adhesion)
  • ASTM D4541 (Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers)
  • ASTM D7234 (Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers)
Operation Notes
Important Safety Precautions:
  • Do not exceed 10.5 KN during operation to prevent instrument damage
  • Reset to zero between test points using the zero-reset key
  • Charge battery when display appears blurred or dim
  • Unplug charger immediately after 3-hour full charge to prevent over-charging
  • Clean instrument promptly after each use
  • Protect from water, moisture, oil, impact, and high-temperature sources
