PRACUT-111 Single Channel Air-Coupled Ultrasonic Testing System (ACUT NDT Equipment)

1 piece
MOQ
PRACUT-111 Single Channel Air-Coupled Ultrasonic Testing System (ACUT NDT Equipment)
Features Gallery Product Description Chat Now
Features
Specifications
UV Lamp Type:: UVB313
Product Name:: Lamp-Type UVB313 Accelerated Anti-Yellowing Aging Test Chamber
Test Wavelength:: 313 Nm
Compliance Standard:: ASTM-D1148
Chamber Material:: SUS304 Stainless Steel
Voltage:: AC 220V, 50Hz
Inner Chamber Size:: 710×400×350 Mm (L×W×H)
Product Type: Air-Coupled Ultrasonic Non-Destructive Testing Equipment
Transmitting Bandwidth: 30kHz ~ 5MHz
Maximum Transmit Voltage: 1200Vpp
Model: PRACUT-1 / PRACUT-M4 / PRACUT-M8
Core Technology: Non-contact Air-coupled Ultrasonic Inspection, No Liquid Couplant Required
Communication: LAN Ethernet Port
Power: AC 220V
Highlight:

Single Channel Air-Coupled Ultrasonic Testing System

,

ACUT NDT Equipment with warranty

,

Non Destructive Testing Equipment ultrasonic
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Model Number: PRACUT-1
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 100pcs
Product Description

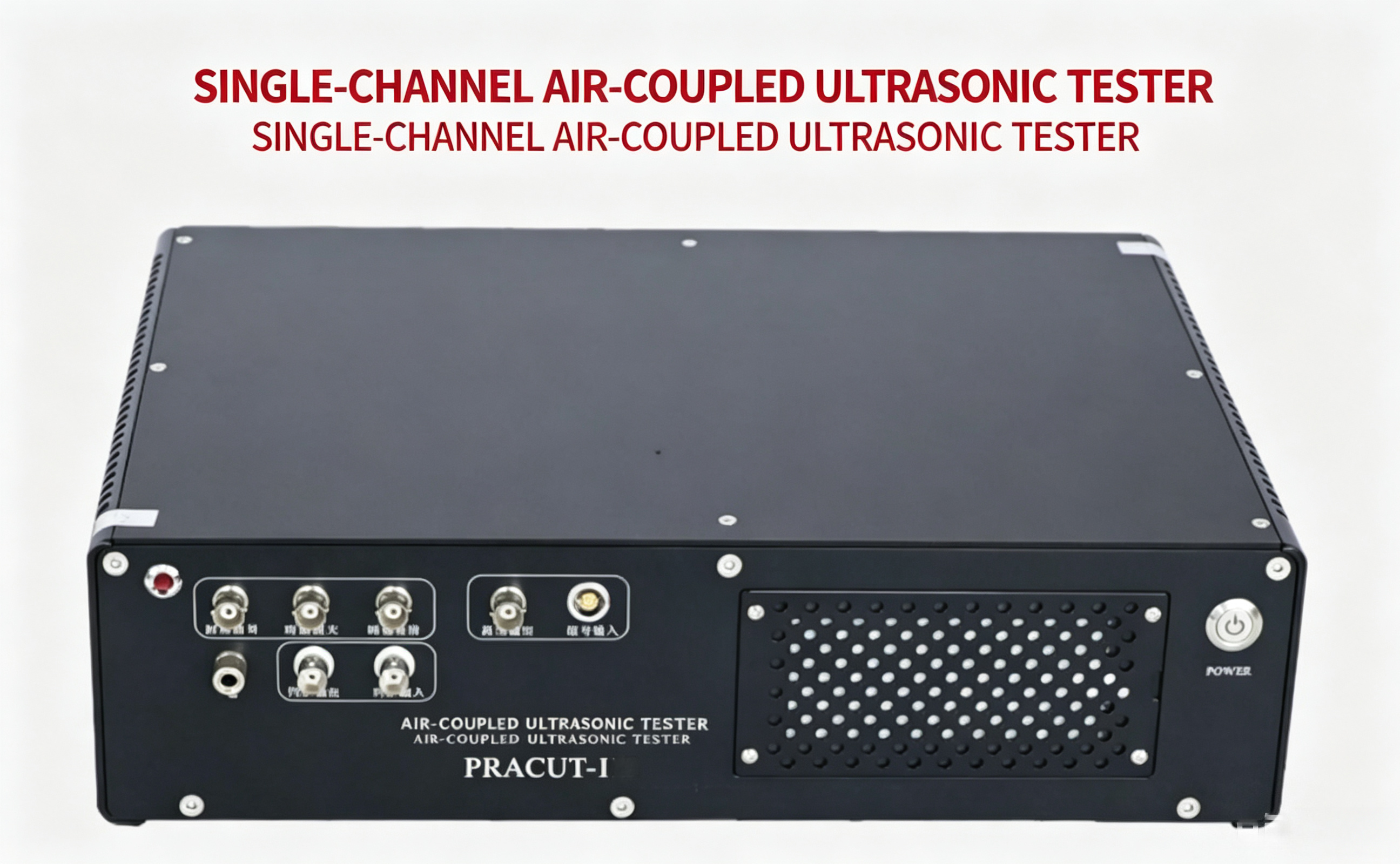

PRACUT-111 Single Channel Air-Coupled Ultrasonic Testing System
Complete ACUT NDT Equipment Kit with Probes & Imaging Software
For technical questions and custom requirements, contact us at +8613488765676
The PRACUT-1 air-coupled ultrasonic testing equipment is widely used in aerospace, automotive, railway, marine, and lithium battery industries. It offers unique detection advantages for composite materials (carbon fiber, glass fiber, silicon crystal), multi-layer adhesive materials (honeycomb, film, rubber), polyester foam materials, and lithium batteries.
Key Features
Non-contact NDT technology - China's first air-coupled ultrasonic testing system
Open interface functions supporting secondary development
Linear frequency modulation and continuous frequency automatic scanning
Patented amplitude attenuation and air-coupled ultrasonic interference ranging technologies
Advanced signal processing with FFT, digital envelope, and digital filtering
Comprehensive flaw detection for both surface and internal defects
High detection accuracy for precise defect location and characterization
Probe operates 10-100+ mm from workpiece surface - no couplants required
Sensitive to thickness changes and air gaps in materials
Versatile material compatibility including composites, metals, and thin films
Suitable for flat, curved, and inclined workpiece geometries
High-precision C-scan color imaging with scanning frame integration
Automation testing with internal and external synchronization options
Multiple scanning frame types: horizontal, vertical, and robotic arm
Technical Specifications
Specification PRACUT-1 PRACUT-M4 PRACUT-M8
Channel Count14 Independent Channels8 Independent Channels
Max Voltage1200Vpp1000Vpp800Vpp
Transmit WaveformPositive & Negative Square WavePositive & Negative Square WavePositive & Negative Square Wave
Transmit Cycles0.5~200, Adjustable1~15, Adjustable1~15, Adjustable
Repetition Frequency500Hz500Hz500Hz
Transmit Bandwidth30KHz~5MHz30KHz~5MHz30KHz~5MHz
Fixed Gain40dB/60dB, Customizable40dB/60dB, Customizable40dB/60dB, Customizable
Adjustable Gain-10~30dB0~40dB0~40dB
Hardware Filter - High Pass5 Adjustable Gears6 Adjustable Gears/
Hardware Filter - Low Pass5 Adjustable Gears6 Adjustable Gears/
Sampling Frequency100MHz/14bit100MHz/14bit40MHz/12bit
Internal/External TriggerSupportedSupportedSupported
Communication InterfaceLANLANLAN
Power Supply220V AC220V AC220V AC
RF Signal OutputSupportedSupportedNot Supported
Peak Hold OutputSupportedNot SupportedNot Supported
Secondary DevelopmentSupportedNot SupportedNot Supported
Overall DimensionL320×W375×H110mmL515×W440×H175mmL700×W440×H180mm
Weight8.5Kg21Kg25Kg
Working ModeThrough TransmissionGuided WaveReflection
Transducer Frequency30KHz~3MHz, Customizable30KHz~3MHz, Customizable30KHz~3MHz, Customizable
Application Fields
  • Carbon fiber composite materials
  • Glass fiber composite materials
  • Honeycomb composite materials
  • Armor composite materials
  • Lithium-ion batteries
  • Silicon crystal composite materials
  • Multi-layer adhesive materials
  • Film materials
  • Wood
  • Plexiglass
  • Ceramic materials
  • Rubber materials
  • Foam materials
  • Fiber cloth materials
  • Cement board materials
  • Lightweight metals (aluminum alloys, etc.)
  • Multi-layer adhesive laminated materials
  • Multi-layer composite sandwich materials
