SA-11D 3000kg Horizontal Ring-Belt Hard Support Shaft Dynamic Balancing Machine, 200-1500r/min Computer Controlled Dual Side Balancing Tester

1 piece
MOQ
SA-11D 3000kg Horizontal Ring-Belt Hard Support Shaft Dynamic Balancing Machine, 200-1500r/min Computer Controlled Dual Side Balancing Tester
Features Gallery Product Description Chat Now
Features
Specifications
Max Load:: 3000kg
Max Diameter:: 1600mm
Speed Range:: 200-1500r/min
Motor Power:: 11kW
Unbalance Rate: ≥95%
Power Supply: 380V 3-Phase
Testing: Single & Double Side Testing
Highlight:

horizontal ring-belt balancing machine

,

computer controlled dual side balancer

,

3000kg dynamic balancing tester
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Model Number: SA-11D
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 1000pcs
Product Description

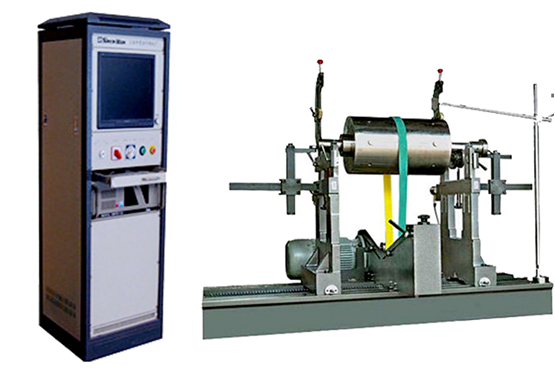

SA-11D 3000kg Horizontal Ring-Belt Hard Support Shaft Dynamic Balancing Machine
The SA-11D (3000 kg) horizontal ring-belt computer-controlled hard-support balance machine features a maximum load capacity of 3000 kg. It utilizes a variable-frequency infinitely variable speed drive system with motor speed regulation via frequency converter and pulley-driven belt movement for workpiece operation.
This advanced balancing machine offers simple operation, safe usage, modular design, and is equipped with a sophisticated computer-controlled LCD color display system for precise dynamic balancing measurements.
Technical Specifications
Parameter Unit Value
Maximum workpiece mass kg 3000
Maximum diameter of the workpiece mm 1600
Workpiece support shaft diameter range mm Φ15-120-240
Minimum distance between support centers mm 200
Maximum distance between support surfaces m 2 (bed length)
Balancing Speed r/min 200~1500
Motor power; Inverter power kw 11 kW four-phase motor / 11 kW
Minimum achievable remaining imbalance value (emar) g.mm/kg A ≤0.3
Reduction Rate of Imbalance (URR) % ≥95
Power Configuration
3-phase / 380 V / 50 Hz
Key Features & Capabilities
  • Measures single-sided and double-sided balance with direct display of phase, speed, waveform diagrams, and imbalance values in grams, gram-millimeters, gram-centimeters, or ounces
  • Bilingual (Chinese-English) mechanical program interface with comparison capability
  • Comprehensive memory, printing, storage, reminder, and self-diagnostic functions
  • Network connectivity for remote operation and internet data transmission
  • Automatic calculation of imbalance results with qualified/unqualified display
  • Permanent data retention with timestamps and automatic Excel format backup
  • High-speed infrared photoelectric optical sensor (Japan OPTEX)
  • High-speed, high-precision ceramic piezoelectric sensors (Beijing Aerospace Industry)
  • NSK bearings within the roller frame for superior performance
System Configuration
Control & Display System
SMC-2015-CA host system with 17-inch human-machine interface supporting Windows senve, 8, 10, or XP operating systems. Features computerized touch display showing speed, left/right alignment values, and phase information with user-friendly interface.
Sensor Technology
Equipped with 2 high-sensitivity piezoelectric sensors and 1 imported Japanese fiber-optic photoelectric sensor for exceptional measurement accuracy and stable performance.
Data Acquisition
Advanced data acquisition system utilizing automatic programmable amplifier and high-performance filters, achieving a dynamic measurement range exceeding 1:1,000,000.
All major components utilize high-quality parts from internationally renowned brands, ensuring reliable performance and strong resistance to interference in various operational environments.
