PR10 Lab NDT UT Inspection Computer-Controlled Portable Pulse Generator Receiver for Ultrasonic Transducers

1 Piece
MOQ
Bulk discount
Price
PR10 Lab NDT UT Inspection Computer-Controlled Portable Pulse Generator Receiver for Ultrasonic Transducers
Features Gallery Product Description Chat Now
Features
Specifications
Product: Ultrasonic Pulser-Receiver
Pulse Type: Negative Sharp Pulse/square Wave Pulse
Rise Time: Generally Between 4.5-8.5ns
Drop Time: Generally Between 3.5-6.5ns
Pulse Width: One Time Pulse Width Is Approximately 28ns
Band Width: 0.5-20MHz
Repetition Frequency: Internal Trigger: 4Hz-2kHz; External Trigger: 0-20kHz
External Trigger: Rising Edge Trigger; Trigger Voltage: 3.3V; Duty Cycle <50%
Highlight:

ndt ultrasonic flaw detector
Basic Infomation
Brand Name: TESTECH
Model Number: PR10
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

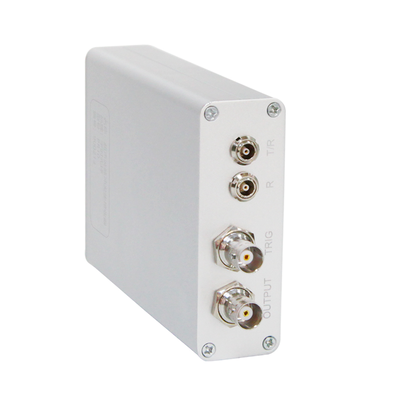

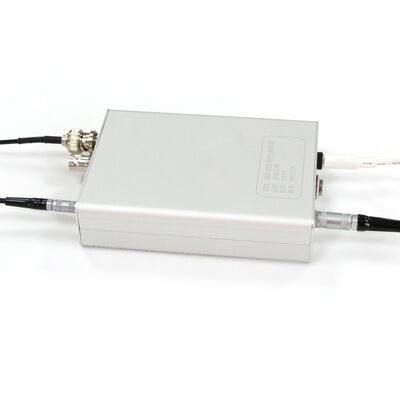

PR10 Ultrasonic Pulse Generator and Receiver
  • Wide Frequency Range: 4Hz - 2kHz – Suitable for diverse applications
  • High-Precision Signal Processing – Enhances detection sensitivity
  • Gain Control: Wide-range adjustable to suit various testing environments
  • Key Applications: Probe performance testing, material analysis, ultrasonic flaw detection and thickness measurement
  • Signal Processing: Specialized hardware for ultrasonic pulse generation and reception with computer control capabilities

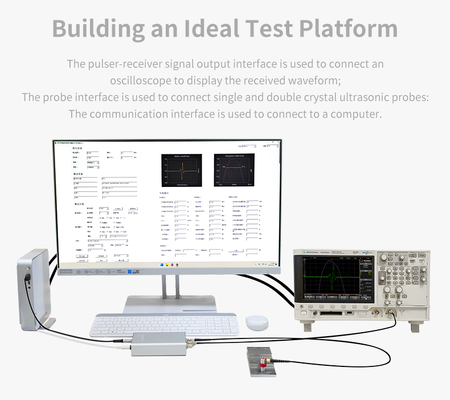

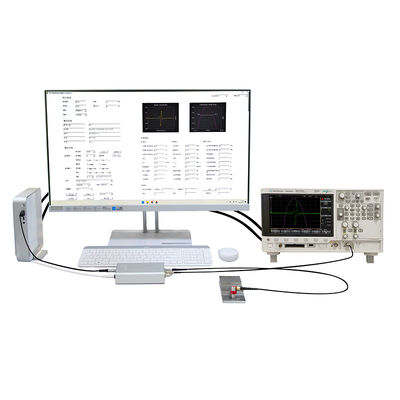

A computer-controlled ultrasonic pulse generator and receiver with excellent performance. It is used to connect ultrasonic probes and oscilloscopes.

PR10 Lab NDT UT Inspection Computer-Controlled Portable Pulse Generator Receiver for Ultrasonic Transducers 0

PR10 Lab NDT UT Inspection Computer-Controlled Portable Pulse Generator Receiver for Ultrasonic Transducers 1

Control Parameter Range Stepper
Pulser Emission Voltage 60V, 110V, 150V, 200V option
Pulse Width 1~40 (1x is about 28ns) 1x
Repetition Rate (internal trigger) 4Hz, 8Hz, 16Hz, 20Hz, 100Hz, 500Hz, 1kHz, 2kHz option
Trigger Source Internal trigger, external trigger option
Receiver Single/double crystal Monocrystalline (1T/1R), bicrystalline (1T/2R) option
Friction 34Ω, 50Ω, 90Ω, 510Ω option
Gain (electronics) -4dB~55dB 1dB
Pulse Type Negative Sharp Pulse/Square Wave Pulse
Rising Time Typically between 4.5-8.5ns, damping of 510Ω will go to 20ns and above
Descent Time Typically between 3.5-6.5ns
Pulse Width 1x pulse width is about 28ns
Bandwidths 0.5-20MHz
Excitation Pattern Pulse-echo (P-E), penetration (T-T)
Repetition Rate Internal trigger: 4Hz-2kHz; External trigger: 0-20kHz
External Trigger Rising edge trigger; Trigger voltage: 3.3V; Duty cycle < 50%
