Home /Products/Radiation Detector/20keV-7MeV Radiation Detector Beta Gamma X Detection Surface Pollution Meter For Radiation Dose

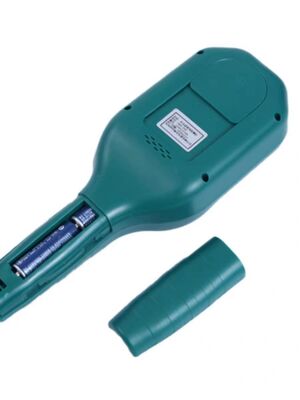

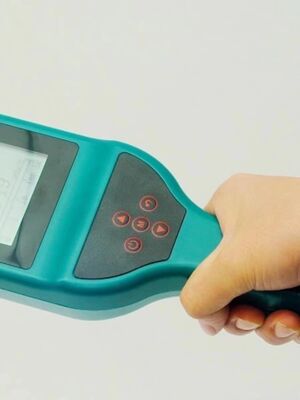

20keV-7MeV Radiation Detector Beta Gamma X Detection Surface Pollution Meter For Radiation Dose

1 Piece
MOQ
Bulk discount
Price
20keV-7MeV Radiation Detector Beta Gamma X Detection Surface Pollution Meter For Radiation Dose
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Product Name: Surface Contamination Ray Detector
Model: MP-100
Detector: Advanced Mica Window GM Detector
Units: USv/h, MSv/h, UGv/h, CPS, Bq/cm2,
Energy Range: 20keV-7MeV
Dose Rate Relative Error: ≤±10%
Sensitive Area: 15.9cm2
Surface Response: TI-204: 0.34, Am-241: 0.36
Alarm Mode: Sound, Light Alarm
Alarm Threshold Value: Dose Rate, Surface Activity And Count Rate
Highlight:

7MeV Radiation Detector

,

20keV Radiation Detector

,

Radiation Dose radiation detector device
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: SMP-100
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

TESTECH 20keV-7MeV Radiation Detector Beta Gamma X Detection Surface Pollution Meter for Radiation Dose or Contamination

One-hand operation, multi-ray detection, reliable data storage.

RM-100 Surface Contamination Monitor uses an imported mica-window GM detector to simultaneously measure α, β, and γ rays (including low-energy gamma like I-125). It delivers accurate readings of radiation dose rate, count rate, and surface contamination activity in a portable, one-hand operable design. With adjustable alarms, 1500 data points storage, and optional long-pole measurement, it’s the ideal tool for reliable radiation safety monitoring.

Features

  • Imported mica window detector, capable of detecting alpha, beta, and gamma rays;
  • Measures radiation dose rate, count rate, and surface contamination activity;
  • Optional lightweight long rod for long-distance radiation measurement;
  • Portable and integrated design, no external probe required, can be operated with one hand;
  • Includes a radiation pulse indicator for rapid source location;
Category Parameters
Detector Imported mica window GM detector
Measurement Items Radiation dose rate, ray count rate, surface contamination activity
Measurement Units µSv/h, mSv/h, µGy/h, mGy/h, CPS, Bq/cm²
Measurement Range

Dose rate: 0.01 µSv/h ~ 10 mSv/h

Count rate: 0.01 CPS ~ 1×10⁶ CPS

Surface activity: 0.01 ~ 1×10⁶ Bq/cm²
Energy Range 20 keV ~ 7 MeV
Relative Error of Dose Rate ≤ ±10%
Sensitive Area 15.9 cm²
Surface Response Tl-204: 0.34, Am-241: 0.36
Alarm Mode Sound and light
Alarm Threshold Dose rate, surface activity and count rate alarm thresholds can be set freely and separately
Data Storage Automatically stores 1500 sets of data, with dose, count and contamination stored separately
Operating Environment

Equipped with ray selection slide cover, optional for different detection ray combinations

Working temperature: -20°C ~ +50°C, Relative humidity: ≤95%
Dimensions 260×90×40 (mm)
Weight 350 g (including battery)
Tag:

surface contamination monitor

alarm meter

gamma dosimeter
