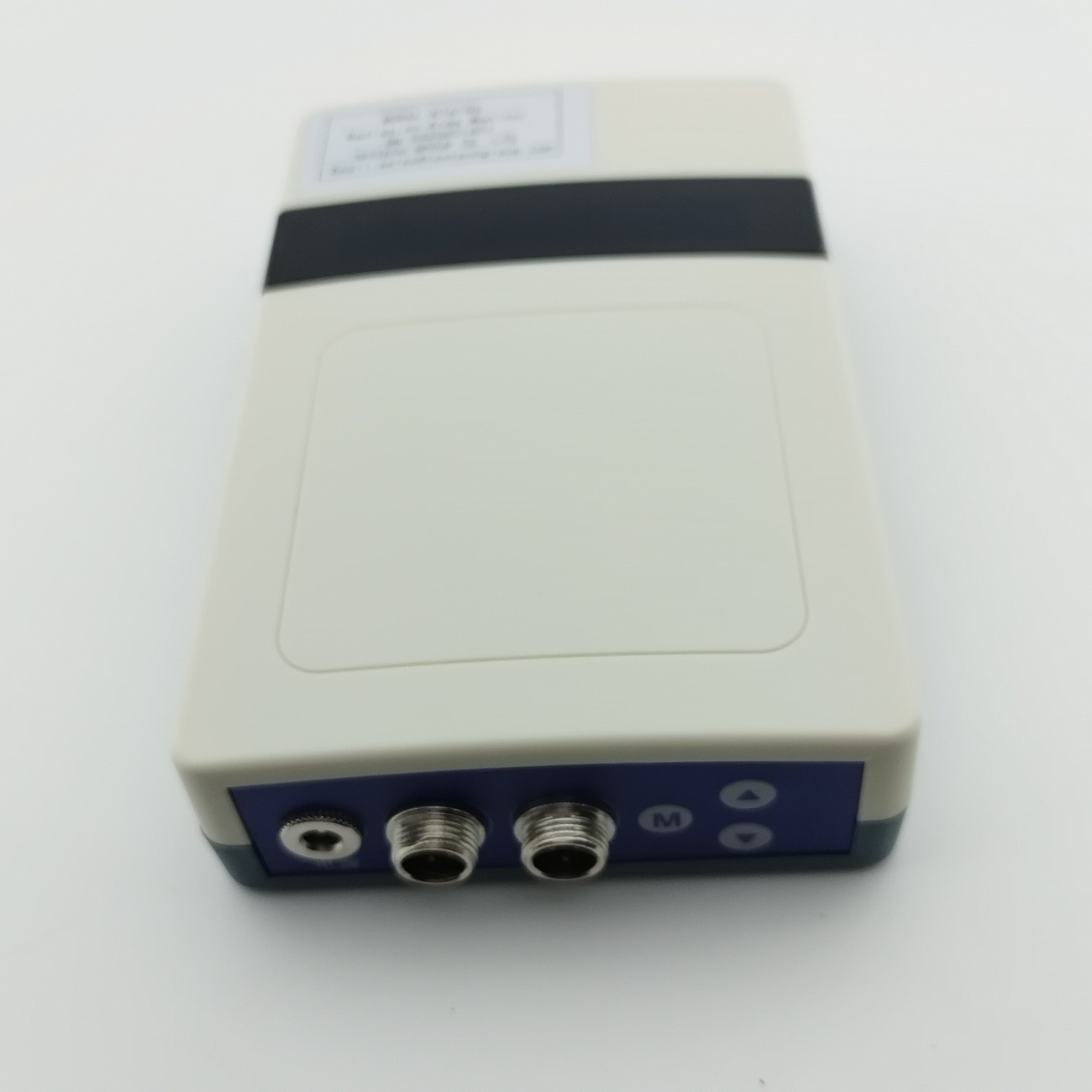

NDT Gamma Radiation Area Monitor NT6103A With Digital Display

NT6103A radiation multi-purpose monitor is a kind of intelligent instrument which is equipped with a built-in high sensitivity radiation detector. Its microprocessor can process data with high-speed. And the LED can display data clearly and visibly. It can set upper and lower limit alarm threshold. and has the sound and light alarm. The instrument can not only be used independently but also used with the host produced by our company and formed a network. Switch power and batteries can supply the power of the instrument. It is an ideal instrument used for testing the dose rate of gamma and alfa in an environmental laboratory, irradiation room, nuclear medicine, molecular biology, radioactive chemistry, nuclear material storage and commodity inspection.

• High efficiency detector, high sensitivity, fast response, and high resolution.
• LED display.

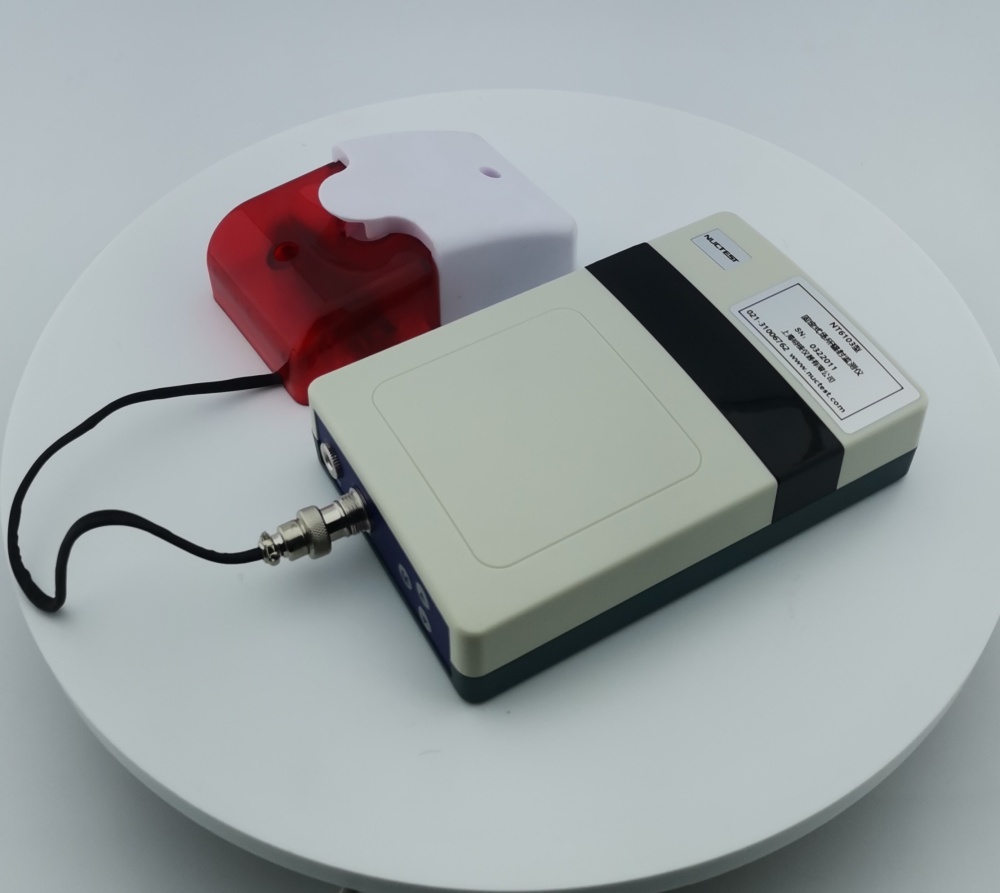

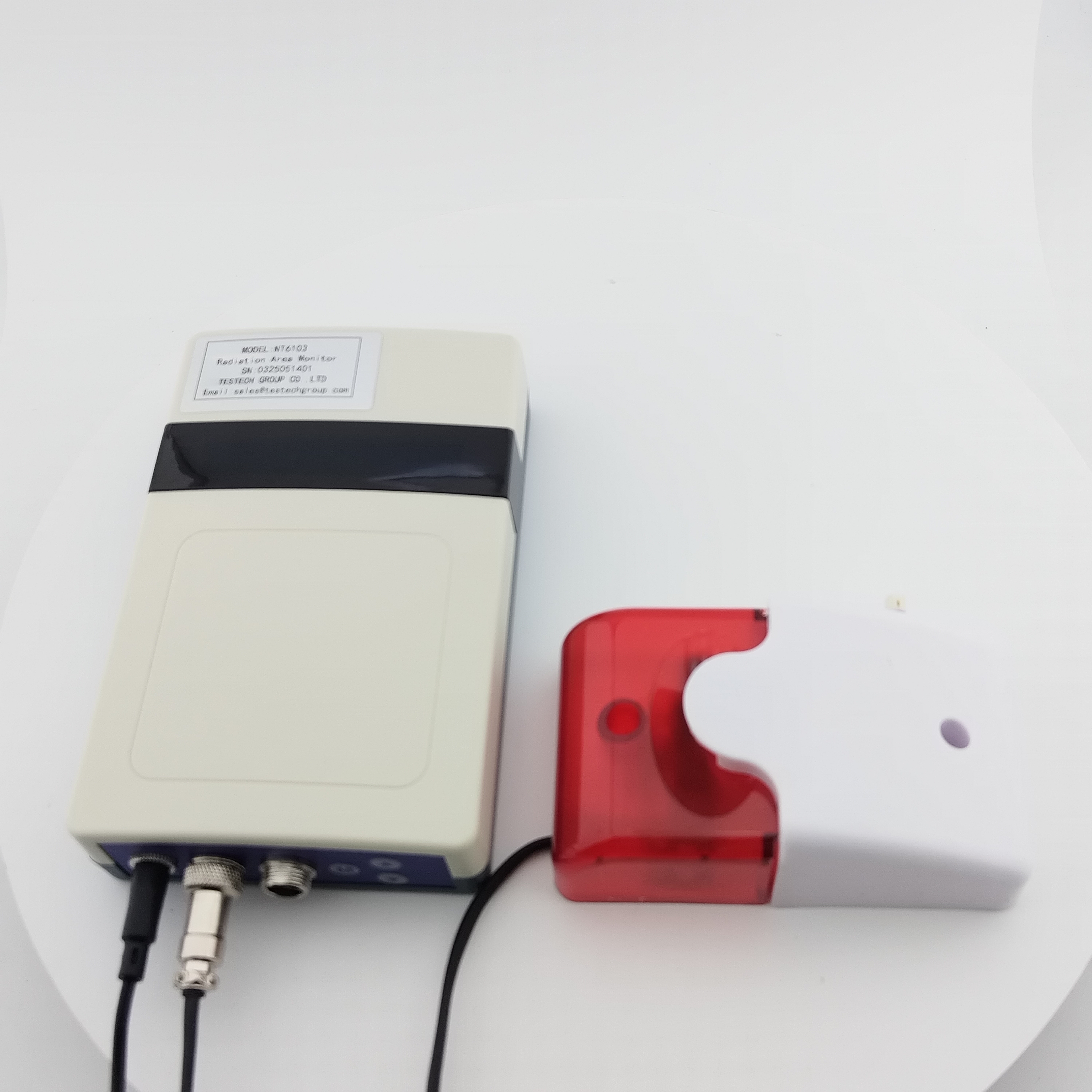

• High light and high decibels sound and light alarm.
• Freely configurable upper and lower alarm thresholds.
• Sensor fault alarm.

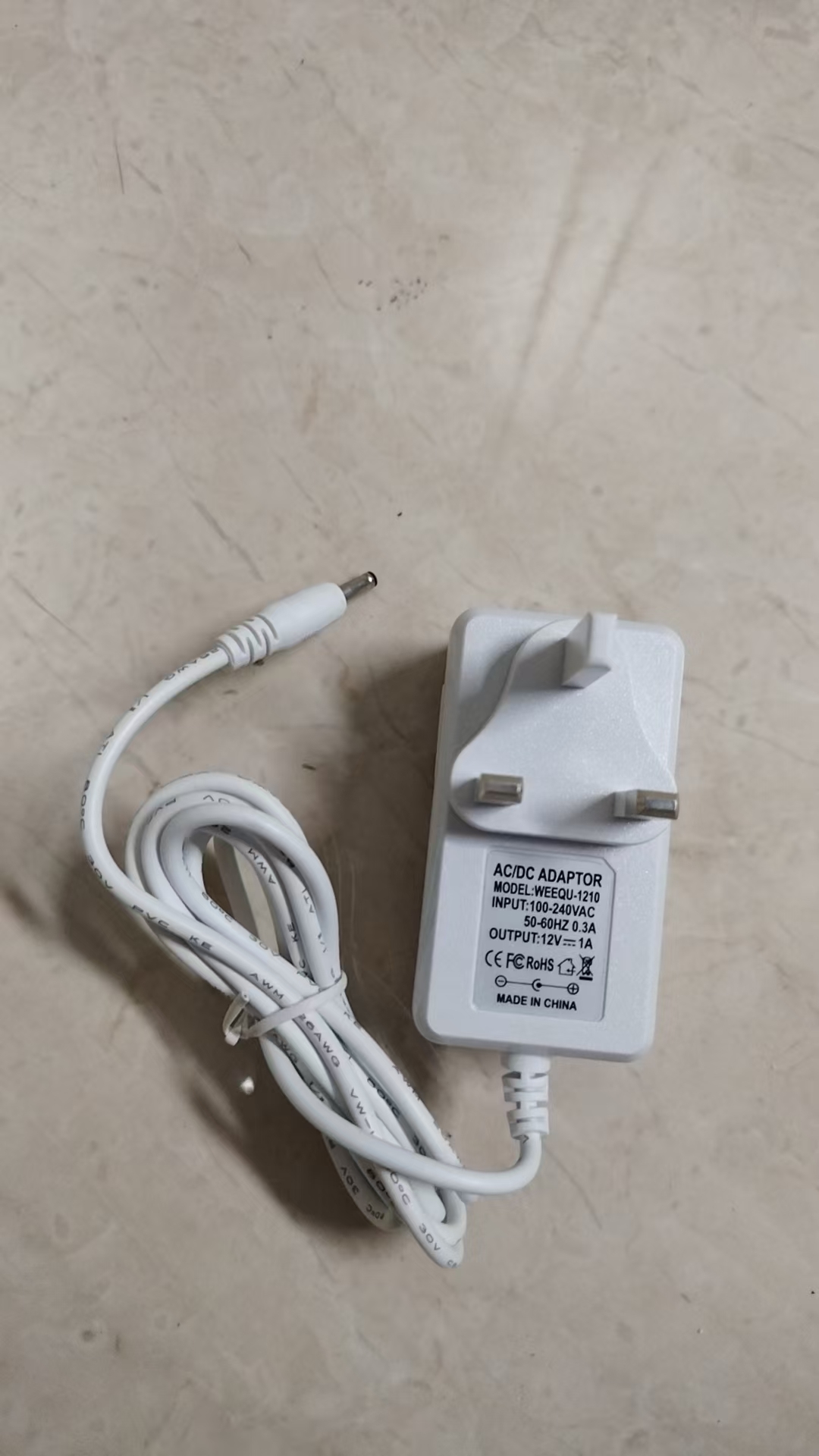

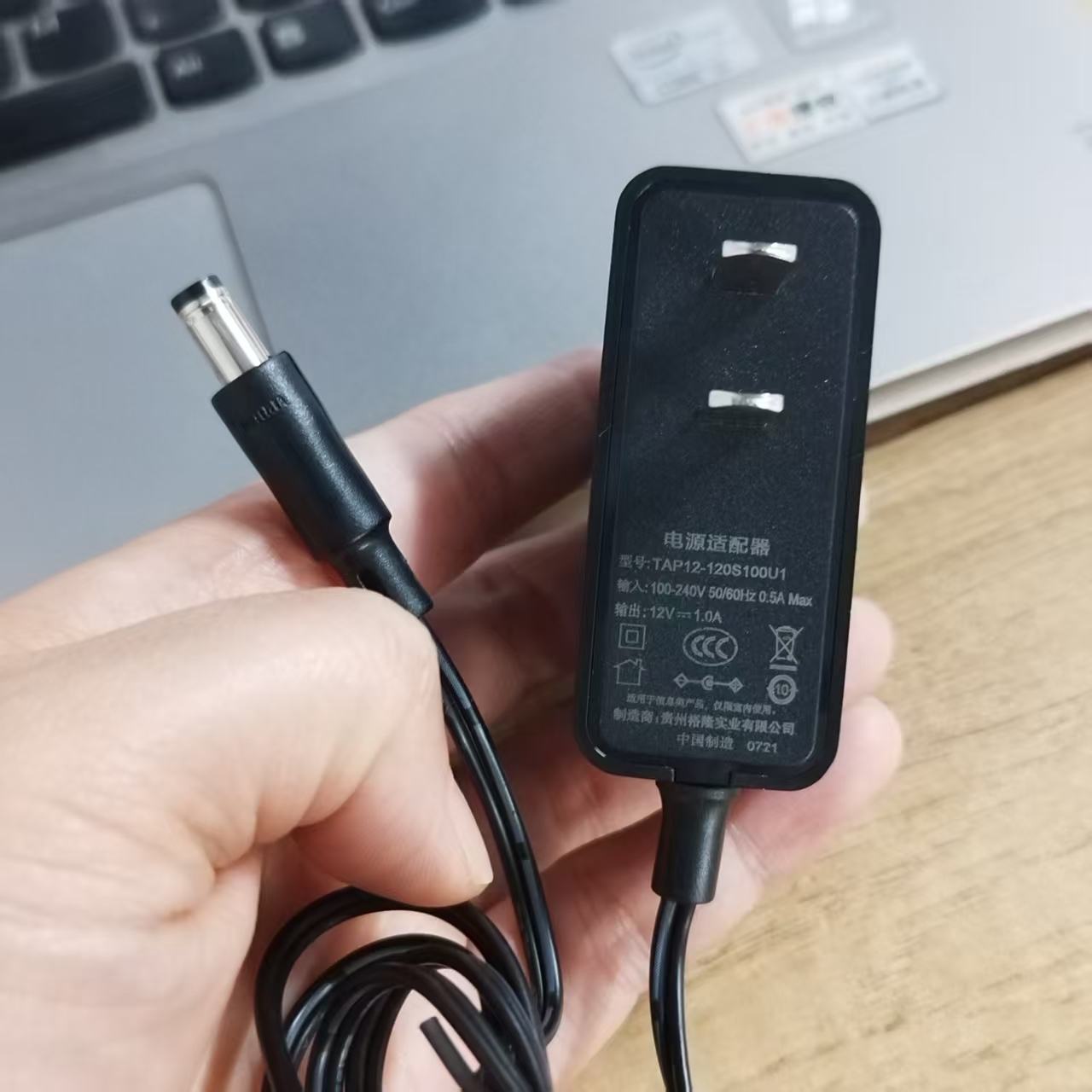

• Wide power supply range: DC 6~40V.
• Flexible deployment for fixed or mobile area monitoring.
• Optional tripod for enhanced observation.
• Built-in 485 industrial bus interface for standalone use or network integration (requires master controller).

1. Measuring range: 0.1μSv/h ~ 150mSv/h.
2. Response time: Measured with a versatile method according to the ray strength. The response time for radiological defense warning is less than 1 second.
3. Relative error: ≤10% within the measurement range.
4. Energy response: 40Kev ~ 3Mev.
5. Operating environment: Temperature: -10°C ~ +50°C, Relative humidity: ≤98% (below 40°C).
6. Pre-set alarm thresholds: Lower: 0.00μSv/h, Upper: 2.50μSv/h (no reset required).
