NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp

1 Piece
MOQ
Bulk discount
Price
NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Type: NDT Testing
Model Number: NDT LAMP
Brand Name: TESTECH
Wavelength(nm):: 365
STEADY-STATE UV-A INTENSITY At 38cm: L:8000 μW/cm 2;H:20000 μW/cm2
Appplication Area(㎡):: 200
Power Supply:: DC
BATTERY MODEL:: 3.7V 4800mAh
Application: NDT Testing Fluorescent Flaw Detection
OEM: Yes
Port: CHINA
Highlight:

ndt inspection equipment

,

ndt magnetic particle testing

,

odm inspection equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: UV30
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
TESTECH NDT 365nm UV LED NDT magnetic particle fluorescent Lamps
Model UV10 UV30 UV50 UV70
Lamp Beads NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount 1 1 1 3
Input Voltage 3.7-4.2V 3.7-4.2V 3.7-8.4V 3.7-8.4V
Output Power 3W 3W 3W 9W
Intensity of Ultraviolet Ray at 38cm Distance 10000uW/cm2
13000uW/cm2		 L: ≥8000uW/cm2
H: ≥20000uW/cm2
20000uW/cm2
Irradiated Area at 38cm Distance 43mm 45mm 55mm 80mm
Diameter of Light Inlet Window 22 34 55 50
Battery Model ICR 18650 ICR 26650 ICR 26650 ICR 18650
Battery Capacity 2600mAh 4800mAh 4800mAh 2600mAh
Number of Battery 1 1 2 4
Charging Time ≥5H ≥6H ≥7H ≥5H
Working Hours ≥4H ≥5H ≥7H ≥5H
Battery Life More than 500 time for fully charge and discharge
Outline Dimension 28 mm*24 mm*128mm 40mm*33 mm*144mm 62 mm*34 mm*240 mm 60mm*50 mm*143mm
Weight(including Battery) 140g 240g 520g 610g

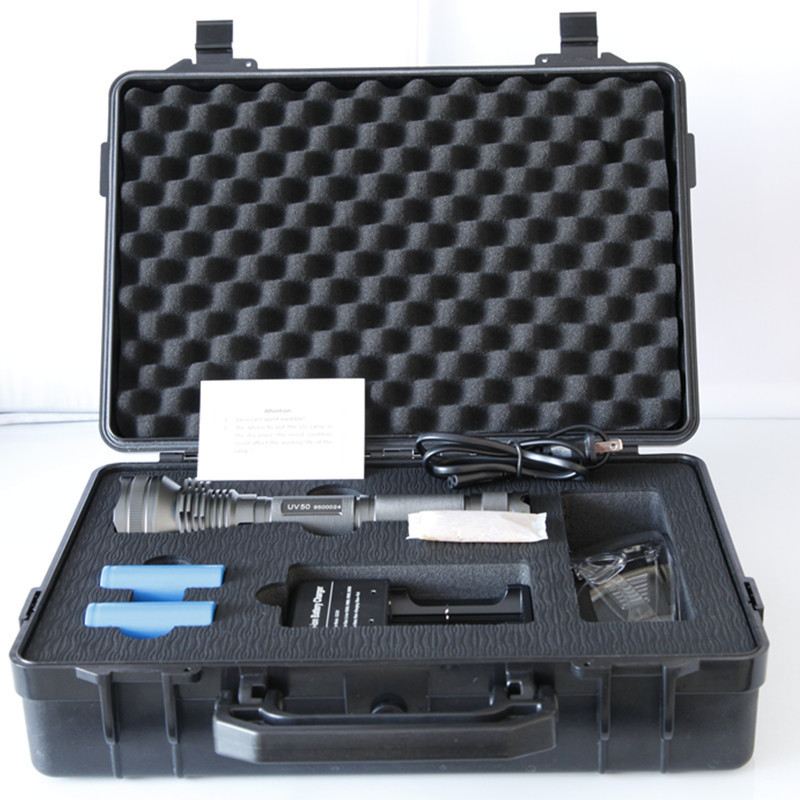

Standard delivery
Model Main unit Battery Charger Lamp box Protection glasses English Manual Quality certificate Warranty card
UV10 1 1 1 1 1 1 1 1
UV30 1 1 1 1 1 1 1 1
UV50 1 2 1 1 1 1 1 1
UV70 1 4 1 1 1 1 1 1
Products Description

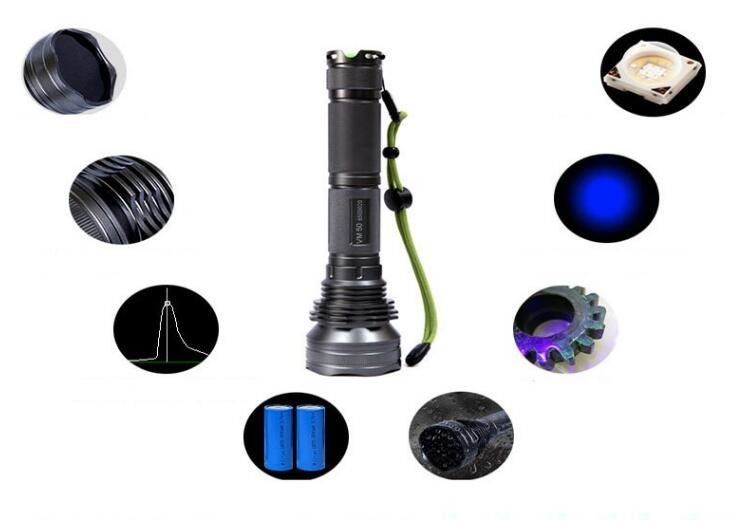

NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp 0

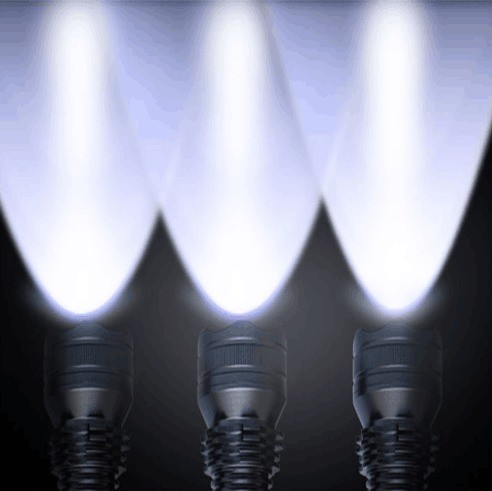

NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp 1
NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp 2

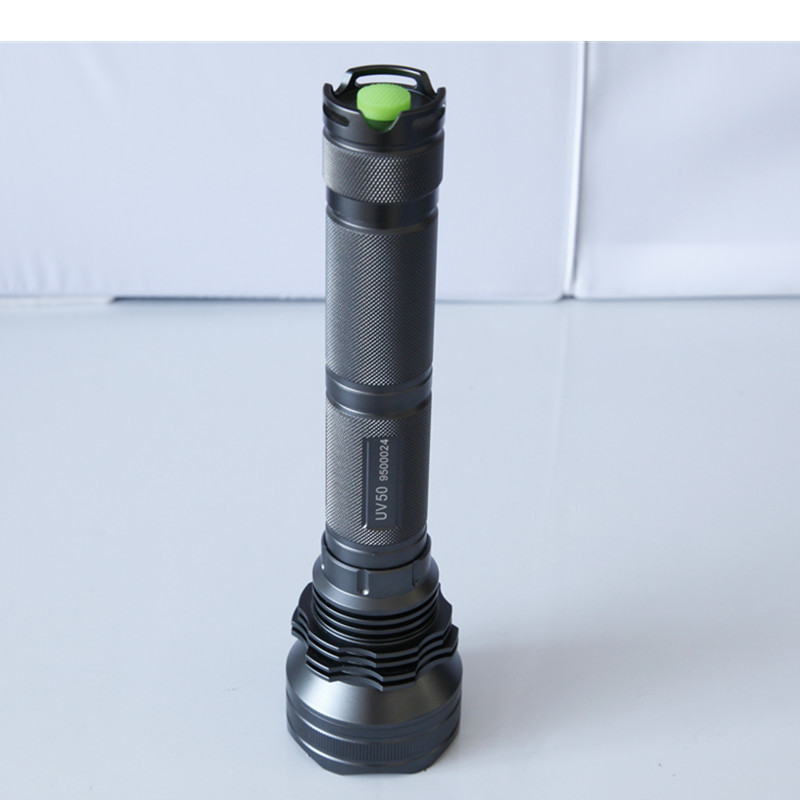

NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp 3
NDT Metal Crack Check UV LED Light Fluorescent Leak Detection Lamp 4
