8-80mm Wire Rope Cleaner And Greasing System 220V Wire Rope Testing

Wire Rope Cleaner& Lubricator kit Components

used as power source and high pressure output grease.The pressure of the input gas can be adjusted according to the needs of the field,and the output pressure and the output of grease can be controlled. The utility model has the advantages of

convenient adjustment,stable output pressure and long servicelife and can be used forlubricating equipment under different working conditions.

Why wire rope needs re-lubrication?

1, Reduce wear between wire ropes and external machinery or impurities, and reduce friction and wear between internal strands and strands due to stress.

2, Establish an anti-corrosion layer on the wire rope to prevent corrosion and chemical erosion of the wire rope caused by moisture, acid, alkali and other substances in the surrounding environment;

3,Extends the service life of wire ropes and helps reduce unnecessary equipment repair costs and production losses due to equipment downtime.

How to properly lubricate wire rope?

1, Most of the failures of steel wire ropes are caused by wear and corrosion caused by the depletion of internal lubricants, so the sensitive core can obtain. It is very important to get adequate lubrication;

2, The wire rope needs to be cleaned before each lubrication. Its purpose is to remove all foreign matter and previous residual lubrication in the grooves between the rope strands and the gaps between the external steel wires, so that the new grease can smoothly penetrate into the interior of the wire rope;

3, Only by choosing the appropriate special lubricant for wire ropes and the correct leakage method can the wire ropes be reasonably and thoroughly lubricated.

Features & Advantages of wire rope clean& lubricator kit

1, The operation is simple and efficient. Compared with various manual sea skating methods, the work efficiency can be improved by up to 90%.

2, Reasonable lubrication method will not only completely cover the surface of the steel wire rope, but also penetrate into the core of the steel wire rope, greatly extending the service life of the steel wire rope;

3, Effectively remove rust, gravel and other impurities from the wire rope surface area.

4, No longer use manual lubrication, improve operator safety, avoid grease waste and environmental pollution;

5, Applicable to most of the wire rope use environment (applicable rope diameter of 8~80 mm, more than 80 mm can be customized).

6, Strong and durable design, suitable for almost all bad working condition.

Application

Marine-mooring and anchor ropes, deck winches, quayside cranes, ROV umbilical, submarine wire ropes, submarines, cargo cranes, mine hoists, oil well platforms and ship loaders.

Industry-overhead cranes, mobile cranes, non-destructive testing services, mining lifting wire ropes, lifting wire ropes, wire rope manufacturers

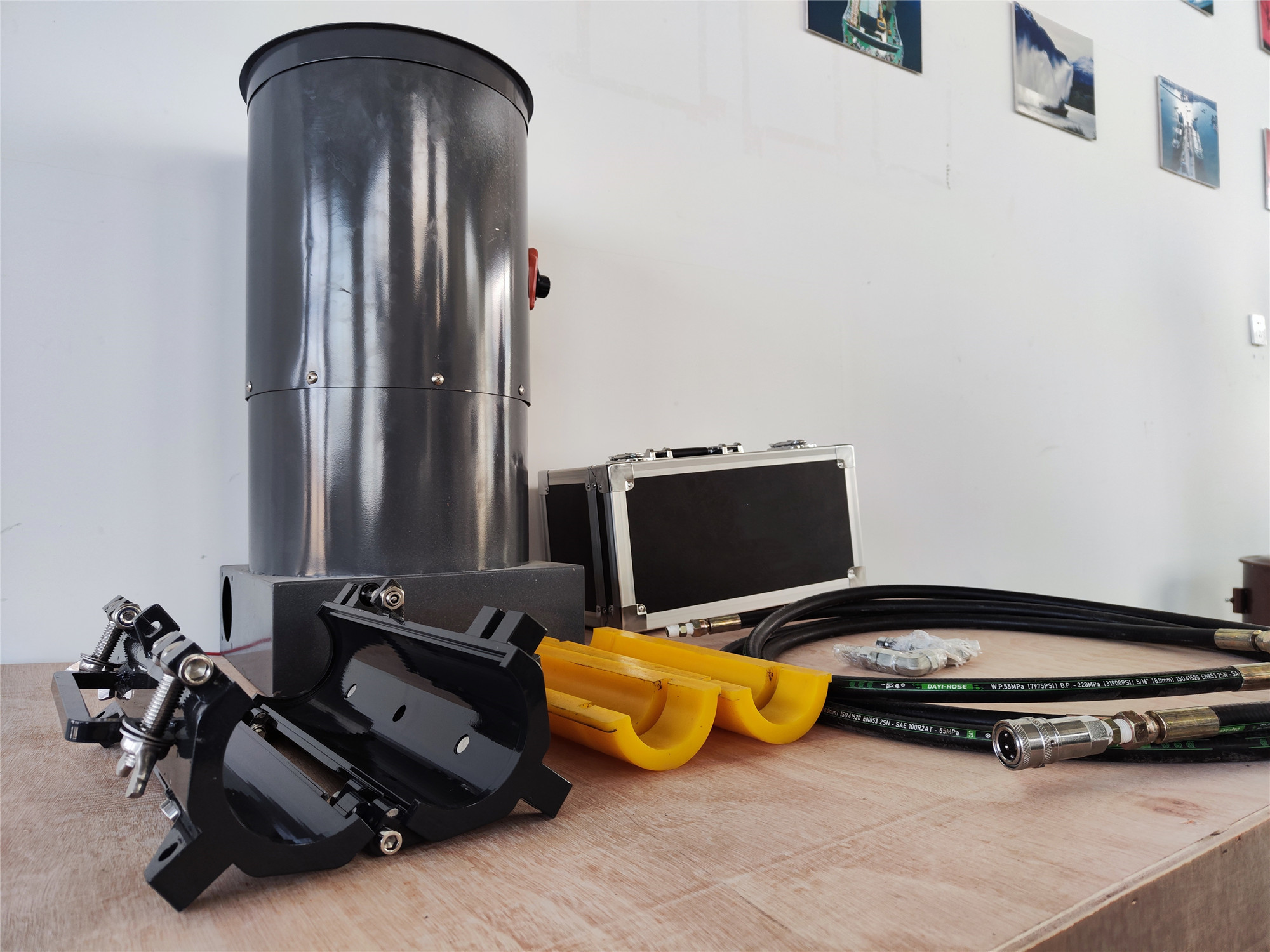

Standard packing list

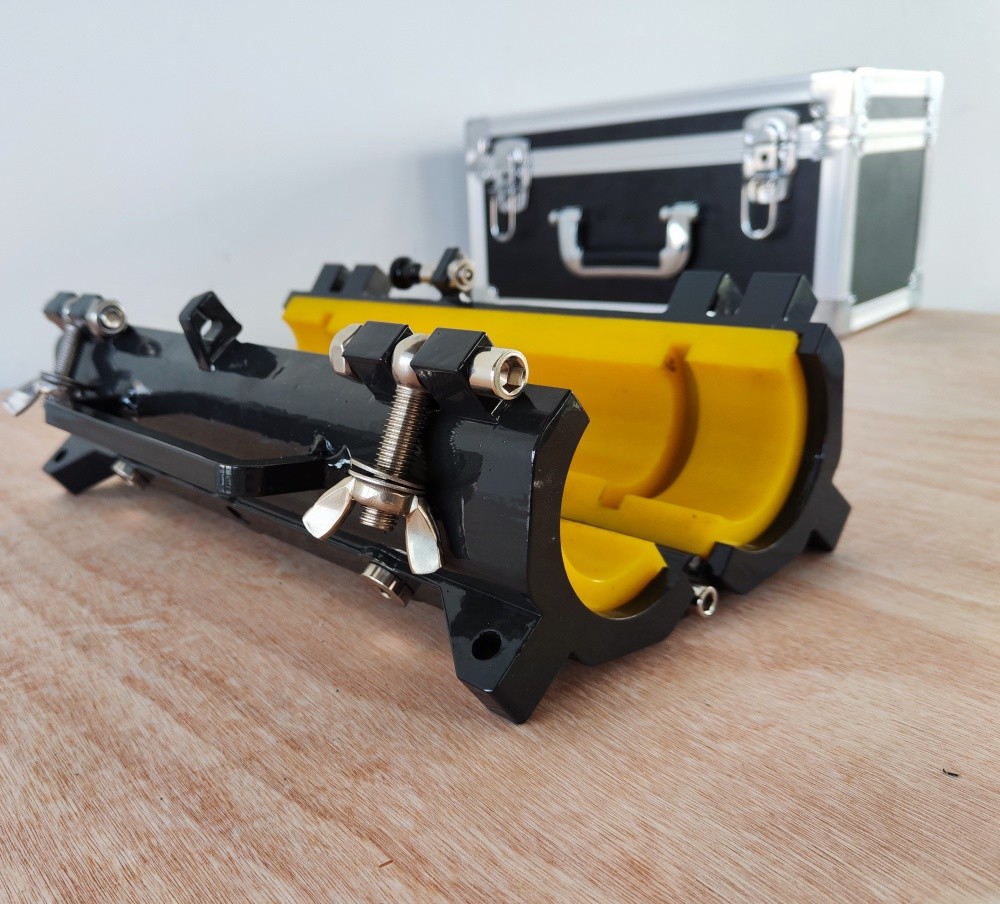

  1. Fixed wire rope clamp

  2. Greasing injection pump system
 3. Greasing inner lining
 4. High pressure oil pipe
